Falcon SC81AHWPA622 Medium Duty Surface Door Closer

Product Description

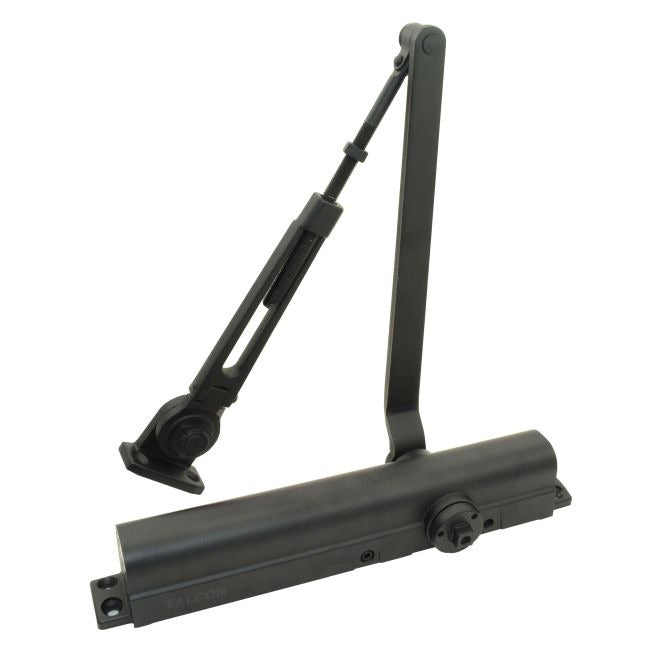

The FALCON SC81AHWPA622 is a medium duty surface-mounted door closer designed for commercial and institutional door applications. It ships complete with a hold open arm and parallel arm bracket, allowing the door to be held open at a set position — a practical feature in high-traffic corridors, loading areas, and accessible entry points. The unit comes in a matte black finish, making it compatible with door hardware sets that require a consistent dark finish. At 9 pounds, this is a solid-construction closer suited for standard commercial door frames. The package dimensions measure 13.8 inches in length, 5.7 inches in width, and 2.8 inches in height.

This closer is appropriate for medium duty commercial applications such as office buildings, schools, healthcare facilities, and light institutional environments. The parallel arm bracket configuration allows the closer body to mount on the push side of the door with the arm running parallel to the door face, which is a common requirement when clearance on the pull side is limited. The hold open feature is useful in high-traffic or accessibility-compliance installations where a door must remain open during active use periods. This product is sold as an individual unit.

Key Features

• Medium duty surface-mounted door closer rated for standard commercial door applications
• Includes hold open arm that keeps the door open at a designated position
• Parallel arm bracket included for push-side mounting with parallel arm geometry
• Matte black finish for compatibility with coordinated dark-finish hardware sets
• Complete assembly ships as a single unit ready for installation

Compatibility

Designed as an OEM-style surface door closer for medium duty commercial door applications where parallel arm mounting and hold open functionality are required.

Installation Notes

Surface door closers of this type are typically installed by commercial door hardware technicians or licensed general contractors following door hardware manufacturer templates and applicable building code requirements. Before installation, confirm the door and frame construction can support surface-mounted hardware at the specified mounting locations. Verify door swing direction and clearance before selecting final arm position. Follow all applicable accessibility codes, including ADA opening force requirements, when adjusting closer spring tension.
