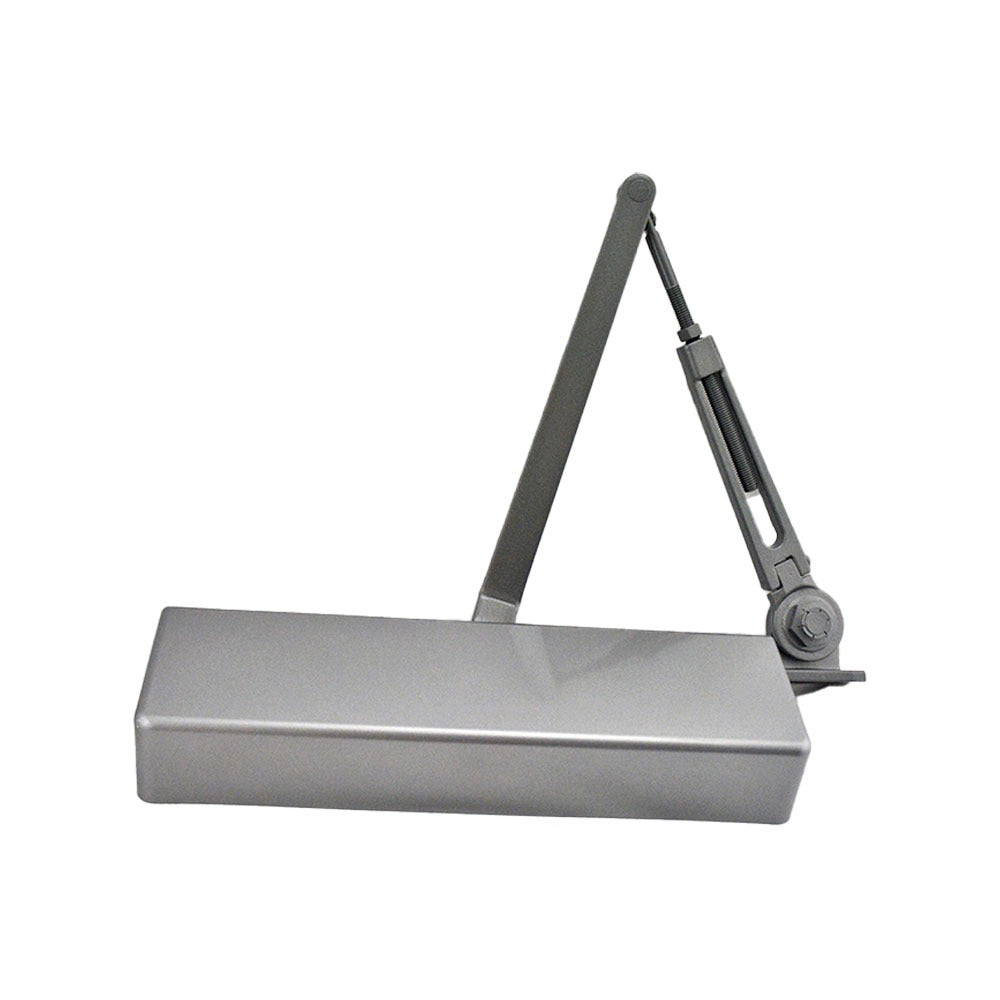

Falcon SC71AHWPA689 Hold Open Surface Door Closer

Product Description

The FALCON SC71AHWPA689 is a heavy-duty, hold-open surface door closer with a parallel arm (PA) bracket, finished in aluminum. It mounts to the surface of the door and frame, providing controlled closing force while allowing the door to be held open at a set position when needed. This unit is designed for commercial and institutional door applications where reliable, code-compliant door control is required. Measuring 14.5 inches in length, 4.6 inches in width, and 4 inches in height, it is sized for standard commercial door frames. Licensed door hardware installers and commercial contractors are the typical trades for this product.

This closer is suited for commercial buildings, institutional facilities, schools, healthcare environments, and other applications where ADA-compliant or life-safety door control is required. The hold-open function is useful in high-traffic corridors and entry points where doors need to remain open during active use periods. The parallel arm bracket configuration allows installation on the push side of the door without a separate track arm assembly.

Key Features

• Hold-open function allows door to stay open at a set position
• Parallel arm (PA) bracket included for push-side surface mounting
• Aluminum finish suitable for standard commercial door hardware coordination
• Heavy-duty construction rated for high-cycle commercial use
• Surface-mount design simplifies installation without concealed routing

Compatibility

Designed as an OEM-style surface door closer for commercial and institutional door applications where a parallel arm, hold-open configuration is specified.

Installation Notes

Installation is typically performed by a licensed door hardware technician or commercial contractor familiar with ANSI and ADA door closer standards. Ensure the door and frame are plumb and structurally sound before mounting. Follow the manufacturer template for fastener placement and use the hardware provided with the unit. Verify spring power adjustment after installation to confirm proper latching without excessive closing force.
