Falcon Q330154626 6 Pin Cylinder W Series G Keyway

Product Description

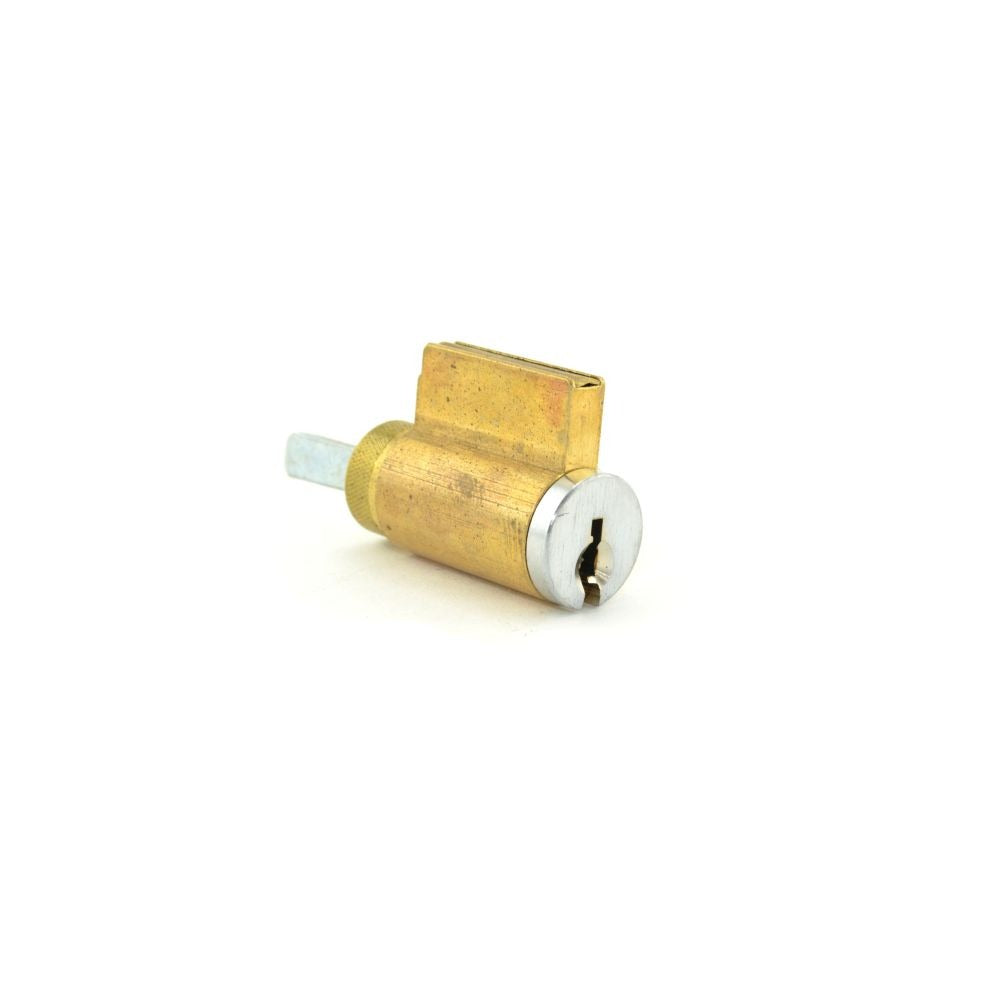

The FALCON Q330154626 is a 6-pin cylinder designed as a replacement or service component for FALCON W Series locksets, excluding the W561 model. It features a G keyway and a satin chrome finish. The cylinder installs into the lock body and provides the pin-tumbler mechanism that controls key operation and locking function. At 3.25 inches in length, 1.1 inches in width, and 0.75 inches in height, it is a compact, direct-fit component. Locksmiths and facility maintenance technicians install this cylinder during re-keying service, lock repair, or scheduled hardware replacement on commercial doors.

This cylinder is suited for commercial and institutional door hardware applications where FALCON W Series mortise or cylindrical locksets are in service. It is compatible with G keyway keyways, meaning it accepts G keyway-cut keys and integrates with existing G keyway master key systems. The satin chrome finish coordinates with standard commercial hardware finishes common in office, healthcare, and institutional facilities. One cylinder is sold per unit.

Key Features

• 6-pin tumbler configuration for increased key combination security
• G keyway design compatible with G keyway key systems
• Satin chrome finish for a clean match to standard commercial hardware
• Compact dimensions allow direct installation into W Series lock bodies
• Sold individually for single-cylinder replacement or service calls

Compatibility

Designed for use with FALCON W Series locksets, excluding the W561 model. Accepts G keyway keys.

Installation Notes

Installation should be performed by a qualified locksmith or credentialed facility maintenance technician. Remove the lockset from the door and ensure the hardware is fully disengaged before extracting or inserting the cylinder. Follow the lock manufacturer's service instructions for cylinder removal and insertion procedures. Verify keyway and pin stack compatibility with the existing master key system before installation.
