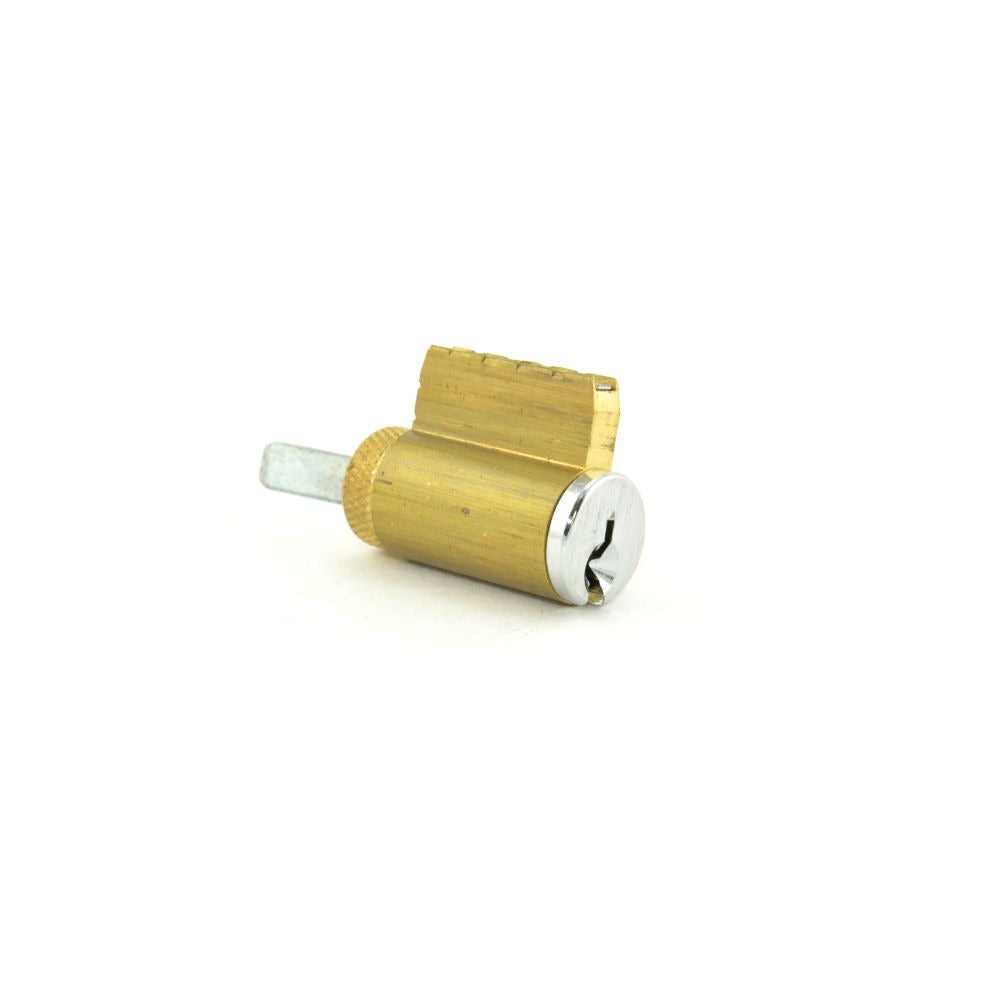

Falcon Q330152626 6 Pin Cylinder Schlage C Keyway Satin Chrome

Product Description

The FALCON Q330152626 is a 6-pin cylinder designed for W Series locksets with a Schlage C keyway and a Satin Chrome finish. This replacement cylinder provides a direct-fit solution for commercial and institutional door hardware applications where controlled access and rekeying capability are routine requirements. The cylinder accepts standard Schlage C keyway blanks, which are widely available and commonly used across commercial keying systems. Licensed locksmiths and door hardware technicians handle installation and keying. The unit ships as a single cylinder and is suited for facilities management programs that require systematic key control.

The Q330152626 is intended for use in FALCON W Series cylindrical and mortise locksets installed in commercial, institutional, and light-industrial door openings. It is well suited for schools, healthcare facilities, office buildings, and other occupancies where building managers need the ability to rekey locks quickly after key loss or personnel changes. The interchangeable core design allows the cylinder to be removed and replaced without disassembling the lockset, reducing labor time during rekeying operations.

Key Features

• 6-pin tumbler configuration for greater key combination depth compared to 5-pin cylinders
• Schlage C keyway compatible with widely available key blanks and commercial keying systems
• Satin Chrome finish for corrosion resistance and consistent aesthetics with W Series hardware
• Designed for interchangeable core removal, enabling rekeying without full lockset disassembly
• Compact form factor: 3.25 inches long, 1.1 inches wide, 0.75 inches tall

Compatibility

Designed for use with FALCON W Series locksets equipped with a Schlage C keyway. Verify cylinder type and cam configuration against the specific W Series lockset model before installation.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial cylindrical and mortise lockset service. Disengage the locking mechanism and confirm the door is in a safe, open position before removing or inserting the cylinder. Use the correct control key for interchangeable core cylinders to avoid damaging the retaining mechanism. Follow applicable building and life safety codes for the occupancy type when servicing access control hardware.
