Falcon Lock W561CP6DDAN626 Classroom Dane Lever 2-3/4

Product Description

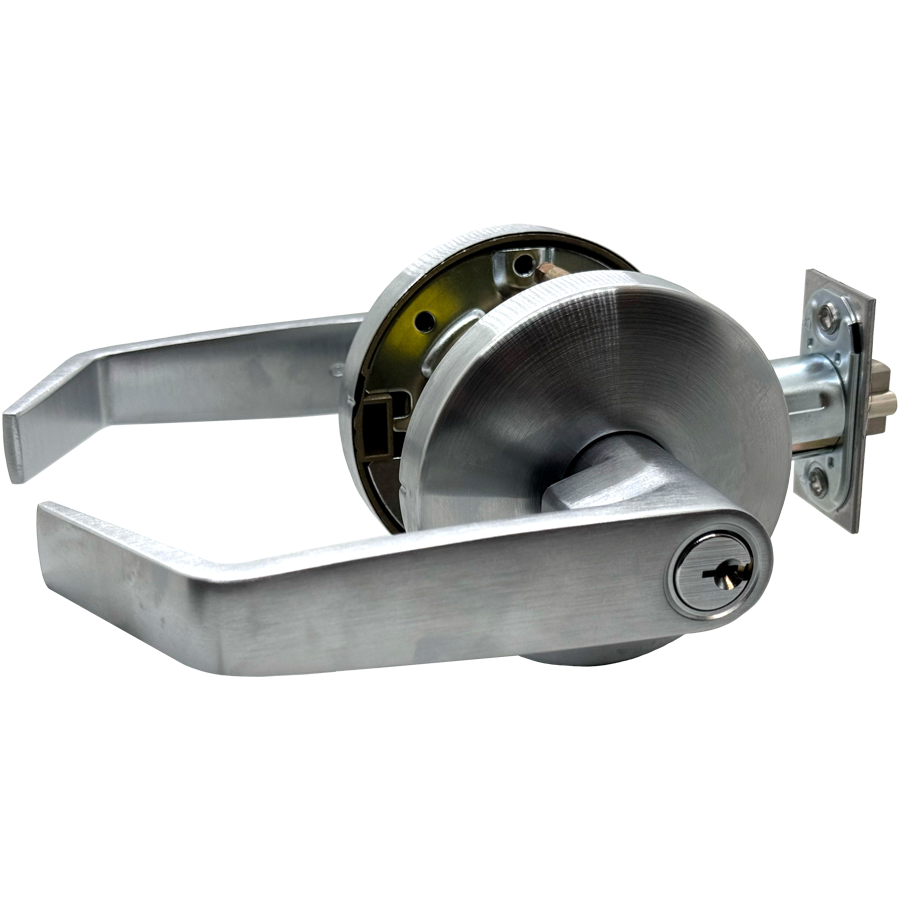

The FALCON LOCK W561CP6DDAN626 is a medium-duty cylindrical lock with a Dane lever, designed for classroom use. The outside lever is locked by a key, while the inside lever is always free for immediate egress. It features a 6-Pin Cylinder with a Schlage C Keyway and a deadlatch.

• Non-handed design for flexible installation
• Grade 2 rating ensures durability
• 2-3/4" backset with ANSI strike

Product Highlights

This Falcon Lock is ideal for classroom doors requiring controlled access and easy egress.

Product Information

Standard Information

• Brand: FALCON LOCK
• Manufacturer Part Number: W561CP6DDAN626 2-3/4

Technical Specifications

• Alternate Part Number-1: 144776
• Grade: Grade 2
• Backset: 2-3/4"
• Handing: Non-Handed
• Function: Classroom
• Cylinder Included: Yes
• Cylinder Type: 6-Pin Cylinder Sch C
• Lever Style: Angled Return Lever
• Strike Size: 4-7/8" x 1-1/4"
• Finish code: 626
• Latch Bolt Type: Deadlatch
• Knob/Lever Design: Dane
• Rose/Escutcheon Size: 3-3/8"
• Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
• Door Bore Size: 2-1/8"
• Lock Category: Cylindrical Lock
• Door Thickness Min: 1-3/8"
• Latch Bolt Face Type: Square Corner
• Latch Bolt Throw: 1/2"
• Rose/Escutcheon Style: Rose
• Door Thickness Max: 1-3/4"
• Knob/Lever Style: Lever
• Height: 3.74
• Length: 7.28
• Width: 6.89
