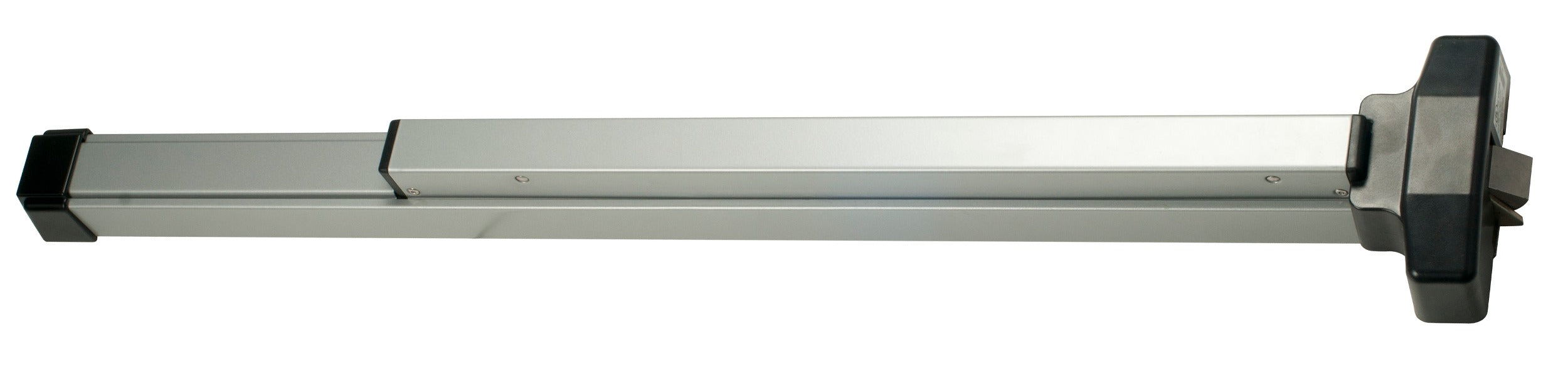

Falcon F19REO6893 Rim Exit Device Fire Rated

Product Description

The FALCON F19REO6893 is a fire-rated rim exit device designed for single-door applications requiring code-compliant panic hardware. This exit-only device mounts directly to the door face and activates the latch mechanism with a single horizontal push on the crossbar, allowing fast egress without a door handle or knob. Built with an aluminum finish, it is suited for commercial and institutional doors where fire-rated hardware is required. The F19REO6893 ships as a device-only unit, meaning no external trim or cylinder is included. At 8.9 pounds, it is a full-sized unit spanning 40 inches in length, appropriate for standard 3-foot door leafs.

This rim exit device is intended for commercial interior and exterior single-door installations where fire-rated egress hardware is mandated by local building or fire codes. Typical applications include stairwell doors, corridor doors, and emergency exit doors in schools, offices, healthcare facilities, and retail buildings. The exit-only configuration means no outside entry hardware is included, making it appropriate for doors that require controlled access from the outside while providing free egress from the inside. Installation is performed by a licensed locksmith or door hardware professional.

Key Features

• Fire-rated construction meets life safety and building code requirements for rated door assemblies
• Rim-mount design installs directly to the door face without mortising
• Exit-only configuration provides free egress without external entry hardware
• 40-inch crossbar length fits standard 3-foot door leafs
• Aluminum finish provides a clean, neutral appearance suitable for commercial interiors
• Sold as a single device unit for straightforward specification and ordering

Compatibility

Designed as an OEM-style rim exit device for standard commercial single-door applications requiring fire-rated panic hardware on 3-foot door leafs.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed locksmith familiar with NFPA 80 and applicable local fire and building codes. Before beginning installation, ensure the door is in the closed and latched position and that any associated electric hardware is de-energized. Verify that the door frame and door leaf are rated to accept fire-rated panic hardware before mounting. Do not modify the device body or crossbar, as alterations may void the fire rating.
