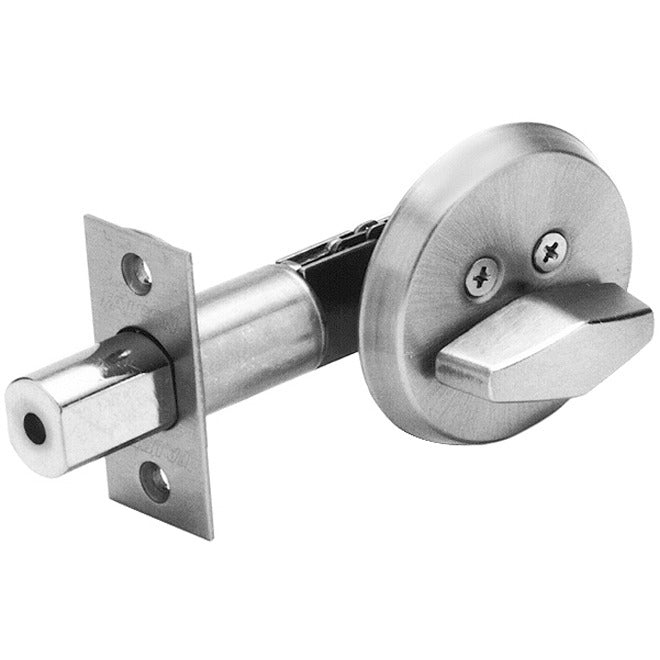

Falcon D261M626 D200 Series Turn by Plate Deadbolt

Product Description

The FALCON D261M626 is a turn-by-plate deadbolt from the D200 Series, designed for commercial and institutional door applications where reliable lockset performance and life safety compliance are required. This deadbolt ships with a 30253 latch and a 10094 strike, finished in Satin Chrome (626). The unit measures 5.7 inches in length, 3.9 inches in width, and 2.9 inches in height, and weighs 1.1 pounds. Installation is handled by a licensed locksmith or qualified door hardware technician working within local building and life safety code requirements.

The D200 Series turn-by-plate deadbolt is suited for commercial, institutional, and light industrial door hardware applications. The interior turn-by-plate operation allows manual deadbolt actuation without a key from the secure side. The included latch and strike are matched components, making this a complete deadbolt assembly ready for installation. The Satin Chrome finish blends with standard commercial hardware suites commonly found in office, healthcare, and institutional facilities.

Key Features

• Turn-by-plate interior operation for keyless actuation from the secure side
• Includes 30253 latch and 10094 strike as a complete assembly
• Satin Chrome (626) finish for compatibility with standard commercial hardware suites
• Interchangeable core design allows re-keying without a locksmith by removing the core
• Compact form factor at 5.7 x 3.9 x 2.9 inches and 1.1 pounds

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt within the FALCON D200 Series door hardware platform.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed locksmith in accordance with applicable building and life safety codes. Power is not required for this mechanical deadbolt assembly. Verify door prep dimensions and backset before installation to confirm fitment. If replacing an existing unit, remove the old hardware completely and inspect the door edge and frame for wear before fitting the new assembly.
