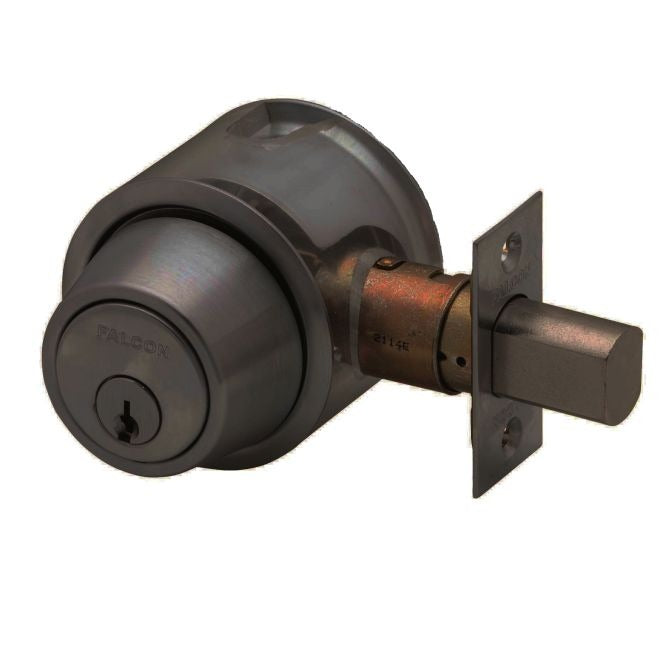

Falcon D241P613 D200 Series Single Cylinder Deadbolt

Product Description

The FALCON D241P613 is a single cylinder deadbolt from the D200 Series, designed for commercial and residential door security applications. It features a C keyway configuration and ships keyed differently (KD), making it suitable for facilities that require individual key control across multiple openings. The deadbolt includes a 30253 latch and 10094 strike plate and arrives in an Oil Rubbed Bronze finish. At 1.7 pounds, it is a solid, hardware-ready unit that door hardware technicians and general contractors install as part of new construction or retrofit security upgrades.

The D241P613 is suited for standard commercial and light-duty institutional door applications where a single cylinder deadbolt is the specified hardware type. The C keyway allows compatibility with interchangeable core systems, enabling a facility manager or security professional to re-core locks without calling a locksmith. The Oil Rubbed Bronze finish coordinates with common architectural hardware finishes found in office, retail, and light commercial environments. The included latch and strike simplify rough-in and finish installation on standard door preps.

Key Features

• Single cylinder deadbolt configuration with C keyway for interchangeable core compatibility
• Keyed different (KD) out of the box for individual key control per opening
• Includes 30253 latch and 10094 strike plate for complete installation
• Oil Rubbed Bronze finish for compatibility with standard architectural hardware sets
• Interchangeable core design allows re-keying without a locksmith by removing the core
• Sold individually; available in cases of 20 for multi-door projects

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for standard commercial and residential door preps using the D200 Series hardware platform with C keyway interchangeable core systems.

Installation Notes

Installation is performed by a licensed locksmith or qualified door hardware technician following applicable building code requirements. Shut down any access control power circuits connected to the door before beginning work. Use the included latch and strike, and verify door prep dimensions match hardware specifications before mounting. Do not force the core into place; follow the manufacturer core insertion procedure to avoid damage to the cylinder.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
