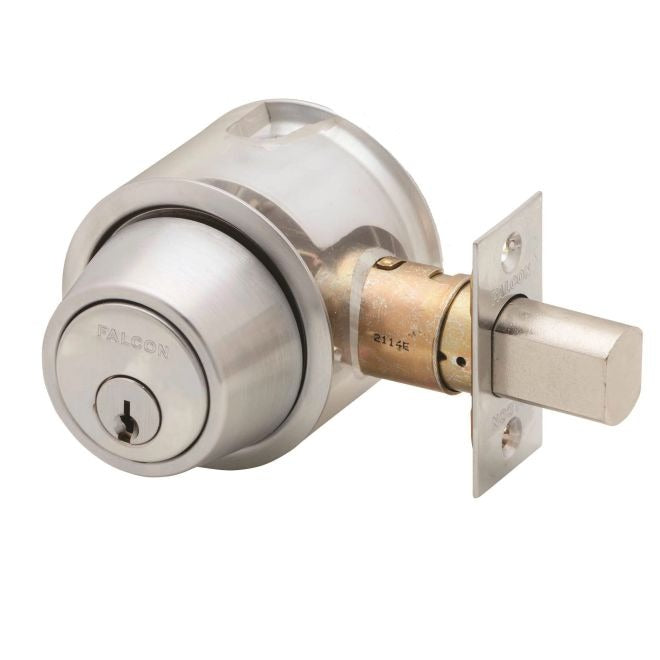

Falcon D231P626 Double Cylinder Deadbolt Satin Chrome

Product Description

The FALCON D231P626 is a double cylinder deadbolt from the D200 Series, designed for commercial and institutional door hardware applications. It features a C keyway configuration and ships keyed differently (KD), making it suitable for facilities that manage large keying programs. The satin chrome finish (626) provides corrosion resistance and a clean, professional appearance. Included hardware consists of a 30253 latch and 10094 strike. The unit weighs 1.6 pounds and measures approximately 5.7 inches in length, 4.4 inches in width, and 2.9 inches in height. This deadbolt is installed by licensed locksmiths, facility maintenance professionals, and commercial door hardware technicians.

The D231P626 is suited for commercial, institutional, and light-industrial door applications where double cylinder deadbolt operation is required. A double cylinder configuration requires a key to operate the lock from both the interior and exterior sides of the door, a common requirement in glass-paneled doors and certain egress configurations governed by local building codes. The interchangeable core design allows facility managers to rekey the lock without a locksmith by removing and replacing the core, which simplifies key control management across multi-door facilities.

Key Features

• Double cylinder operation requires key entry from both sides of the door
• C keyway configuration supports standard commercial keying programs
• Keyed different (KD) — each unit ships with its own unique key combination
• Interchangeable core design allows fast rekeying without a locksmith
• Includes 30253 latch and 10094 strike for complete installation
• Satin chrome (626) finish for durability and professional aesthetics

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt within the FALCON D200 Series door hardware product line. Consult door prep specifications to confirm backset and cross-bore dimensions before installation.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial deadbolt installation. Before beginning, verify that the door preparation matches the required backset and bore dimensions for this unit. Double cylinder deadbolts may be subject to local fire and life safety code restrictions — confirm compliance with the applicable building code, IBC, or AHJ requirements before installation. Do not force the cylinder during core installation, as damage to the interchangeable core mechanism will void function.
