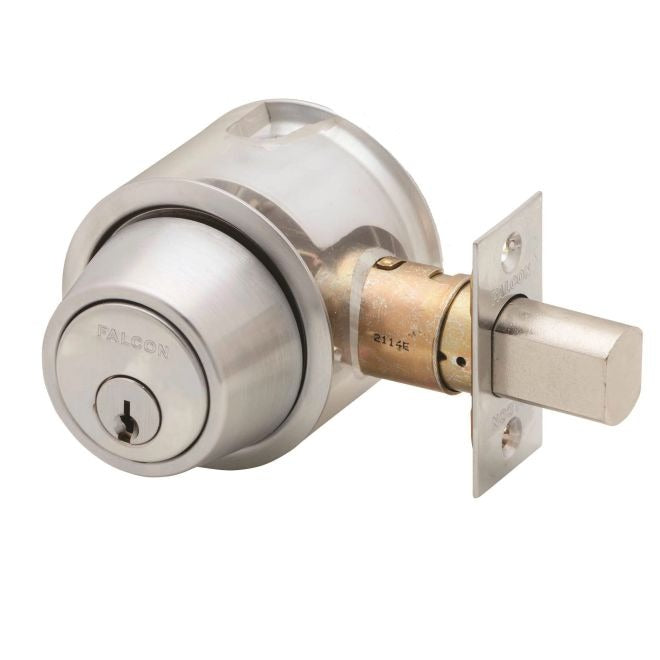

Falcon D141P626 Single Cylinder Deadbolt Satin Chrome

Product Description

The FALCON D141P626 is a single cylinder deadbolt from the D100 Series, designed for commercial and institutional door applications where reliable locking performance and straightforward serviceability are required. The unit ships with a 30256 latch and 10094 strike included. It features a C keyway profile and a satin chrome finish. The interchangeable core design allows for fast re-keying without removing the lockset from the door, eliminating the need for a locksmith during key control events. Licensed locksmiths and commercial door hardware installers are the primary trades who specify and install this hardware.

The D141P626 is suited for single-door entry applications in commercial, institutional, and light industrial settings. The included latch and strike provide a complete installation package for standard door prep. The C keyway is commonly used in master key systems, making this deadbolt compatible with broader key control programs in multi-tenant or multi-door facilities. The satin chrome finish coordinates with standard commercial door hardware trim.

Key Features

• Single cylinder deadbolt operation with thumbturn on the interior side
• D100 Series interchangeable core design allows core removal and re-keying without a locksmith
• C keyway profile supports integration into master key systems
• Includes 30256 latch and 10094 strike for complete door prep installation
• Satin chrome (626) finish for corrosion resistance and clean appearance on commercial doors

Compatibility

Designed as a direct-install single cylinder deadbolt for standard commercial door preparations using the D100 Series platform with C keyway cylinders.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial deadbolt prep standards. Verify door thickness and backset dimensions before installation to confirm proper latch and strike alignment. Ensure the door is in a neutral, unlatched position during hardware mounting. Consult applicable building and fire codes for egress hardware requirements before finalizing the installation.
