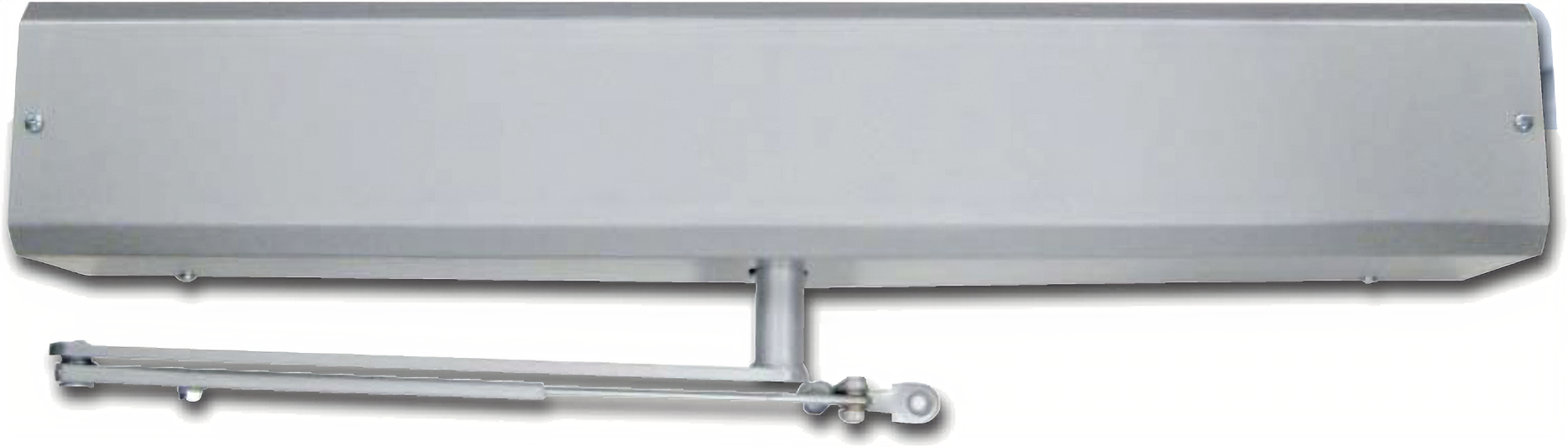

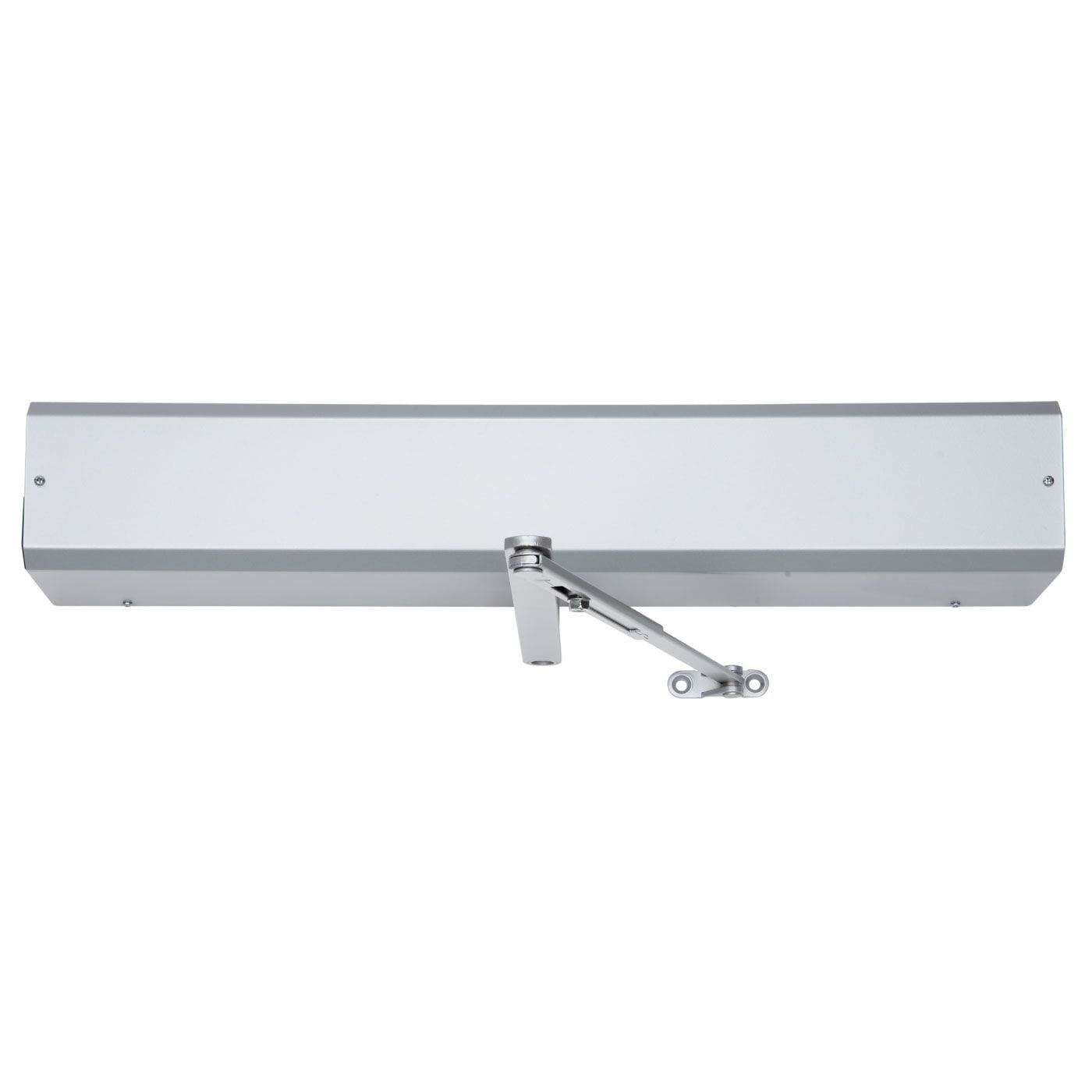

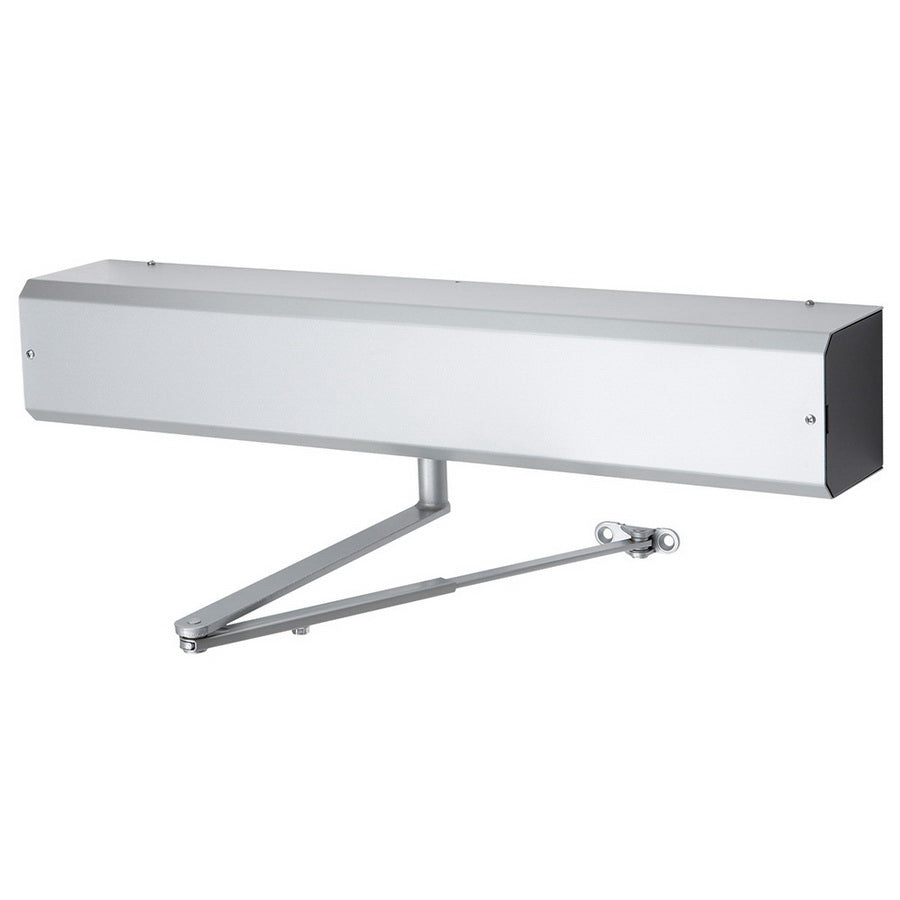

Falcon 8242AL Push Side Auto Door Operator

Product Description

The Falcon 8242AL push side auto door operator is a reliable option for ensuring accessibility in various environments. It meets life safety and building requirements effectively, providing a cost-effective solution for door automation. This operator features interchangeable cores that simplify the re-keying process, enhancing convenience for maintenance.

• Cost-effective design for ease of use
• Ensures compliance with ADA requirements
• Interchangeable cores for quick lock changes

Product Highlights

The Falcon 8242AL is crafted for standard duty, suitable for doors weighing up to two hundred pounds. Its surface mount is designed for push side installation, ensuring wide applicability in commercial settings.

Product Information

Standard Information

• Brand: Falcon
• Country Of Origin: Mexico

Technical Specifications

• Color: Aluminum
• Length: 30.5 inches
• Width: 8.1 inches
• Height: 5.1 inches
• Material: Cast Aluminum
• Function: Pull Side Auto Operator
• Mounting: Surface Mount – Push Side
• Handing: Non-Handed
• Door Weight: Up to 200 Pounds
• Certifications: Conforms to ANSI A156.4, NFPA 80, NFPA 101, and UL10C
• Spring Size: Adjustable Spring Size 1-6
• ADA Compliance: Meets A117.1 Accessibility Code
• Finishes: 689 Aluminum (Powder Coated)
• Warranty: 1 Year Limited Mechanical Warranty
• Manufacturer Warranty: Limited 1 Year
