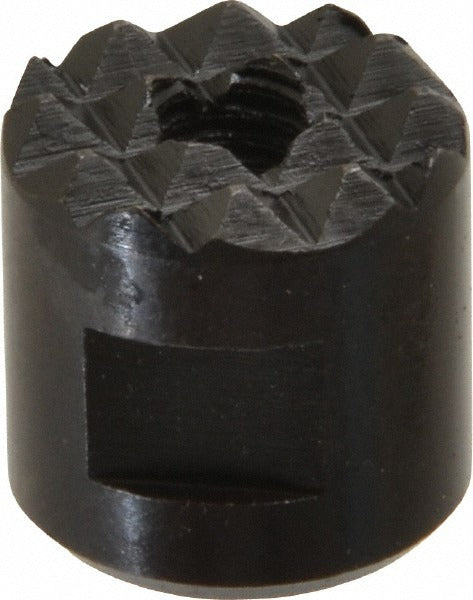

Fairlane HS-53 Round Positioning Gripper Threaded 10-32

Product Description

The FAIRLANE HS-53 is a round positioning gripper designed to hold, locate, and secure workpieces during machining, fixturing, and assembly operations. Machined from high speed steel with a black oxide finish, this gripper delivers the surface hardness and wear resistance required in production environments. The fine tooth diamond serration pattern bites into workpiece surfaces to resist slipping under load. At 0.5 inches in diameter and 0.5 inches in height, the HS-53 fits into compact fixture layouts where space is limited. The 10-32 threaded attachment style allows quick installation and removal in standard fixture plates and tooling blocks.

This gripper is used in metalworking and manufacturing settings where repeatable workpiece positioning is critical. Typical applications include CNC fixtures, assembly jigs, inspection plates, and production tooling where parts must be held without movement during processing. The threaded design suits installations into custom fixture blocks or modular tooling systems. The black oxide coating provides mild corrosion resistance for shop-floor conditions. Machinists, toolmakers, and fixture builders are the primary installers of this component.

Key Features

• Fine tooth diamond serration pattern for positive workpiece grip and slip resistance
• High speed steel construction for hardness and long service life in production use
• Black oxide finish for mild corrosion resistance and reduced light reflection
• 10-32 threaded attachment for straightforward installation in fixture plates and tooling blocks
• Compact 0.5 inch diameter by 0.5 inch height fits tight fixture layouts
• 3/16 inch flat width for wrenching during installation and removal

Compatibility

Designed as an OEM-style positioning gripper for use in standard threaded fixture plates and modular tooling systems that accept a 10-32 threaded insert.

Installation Notes

Installation is typically performed by machinists or toolmakers using standard hand tools sized for the 3/16 inch flat. Ensure the receiving threaded hole is clean and free of chips or debris before threading in the gripper. Do not overtighten, as doing so may damage the serration teeth or distort the fixture block threads. No electrical shutoff or fluid isolation is required for this mechanical component.
