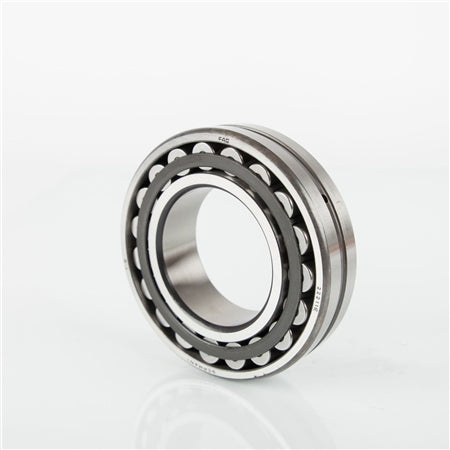

FAG 22224-E1-XL-C3 Self-Aligning Spherical Roller Bearing

Product Description

The FAG 22224-E1-XL-C3 is a self-aligning spherical roller bearing designed for radial loads. It features an inner diameter of one hundred twenty millimeters and an outer diameter of two hundred fifteen millimeters. With a width of fifty-eight millimeters, this bearing is suitable for various industrial applications, ensuring reliable performance and longevity.

• Radial, self-aligning bearing type
• Inner diameter: one hundred twenty millimeters
• Outer diameter: two hundred fifteen millimeters

Product Highlights

This bearing is engineered to handle both static and dynamic loads with high efficiency. It is particularly effective in applications where misalignment may occur, offering a robust solution for machinery in diverse industries.

Product Information

Standard Information

• Brand: FAG
• Part Number: 100764210

Technical Specifications

• Static Load Rating [Max]: 740000 N
• Dynamic Load Rating: 640000 N
• Limiting Speed: 3400 rpm
• Corner Radius [Min]: 2.1 mm
• Radial Internal Clearance: C3
• Inch/Metric: Metric
• Weight: 19.866 LB
• EAN or UPC: 4026677827272
• I.D.: 120 mm
• O.D.: 215 mm
