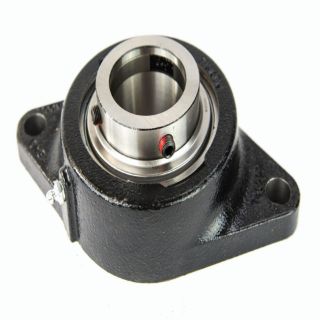

Fafnir YCJT115/16SGT YCJT Flange Mount Ball Bearing Unit

Product Description

Fafnir YCJT115/16SGT is a flange mount ball bearing unit designed for industrial normal duty applications. This unit features a one point nine six inches bore and a six point three six inches bolt center-to-center length, making it suitable for various mounting configurations.

• Designed for use in agriculture and food processing applications.
• Includes a set screw locking device for secure fit.
• Constructed from steel for durability in demanding environments.

Product Highlights

Fafnir's design incorporates wide inner rings for enhanced support and alignment. The housing units are pre-lubricated for convenience, ensuring smooth performance upon installation.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• MPN: YCJT115/16SGT
• Bore Diameter: 1-15/16 in
• Load Capacity: 8740 lb Dynamic / 5210 lb Static
• Maximum Speed: 3000 rpm
• Overall Depth: 2.39 in
• Locking Device: Set Screw
• Overall Height: 2.39 in
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 7-7/16 in
• Bolt Center-to-Center Length: 6-3/16 in
