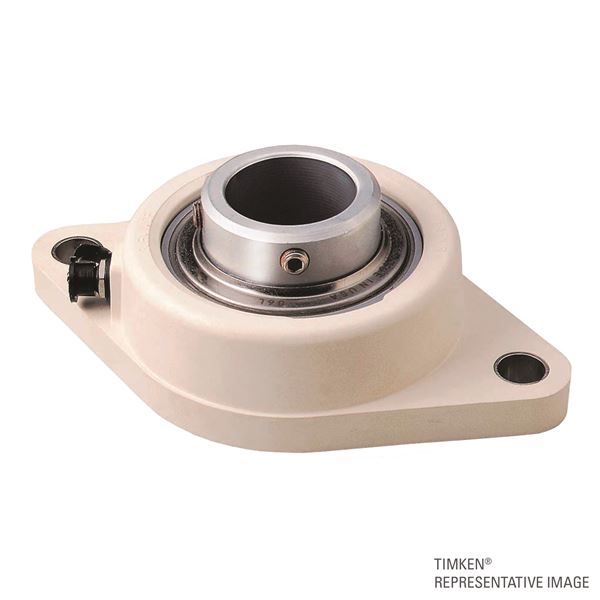

Fafnir YCJT11/4S YCJT Industrial Series 2-Bolt Flange Unit

Product Description

The Fafnir YCJT11/4S is part of the YCJT Industrial Series 2-Bolt Flange Unit. It features a one and quarter inch shaft and is ideal for various applications. This unit is designed for easy installation with its two-bolt mounting configuration. The spherical outer diameter of the inner bearing ensures self-alignment, enhancing performance.

• 1.25 inch shaft diameter
• Cast iron housing for durability
• Relubricatable design for prolonged use

Product Highlights

This flange unit is suitable for industry use, especially in agriculture and food processing. Its design promotes ease of maintenance and longevity.

Product Information

Standard Information

• Brand: Fafnir
• MPN: YCJT11/4S

Technical Specifications

• Bolt Circle Diameter: 4.5938 inches
• Housing Material: Cast Iron
• Housing Construction: 1 Piece
• Bearing Insert: GY1103KRRB3
• Duty: Normal-Duty
• Dynamic Load Rating: 4800 lbf
• Locking Device: Setscrew Locking Collar
• Seal Type: Contact Seals
• Flange Thickness: 15/32 inches
• Overall Width: 1 9/16 inches
• Flange Type: 2-Bolt Flange
• Housing Height: 3 3/16 inches
• Shaft Diameter: 1.25 inches
• Housing Length: 5 9/16 inches
• Weight: 2.48 lbs
