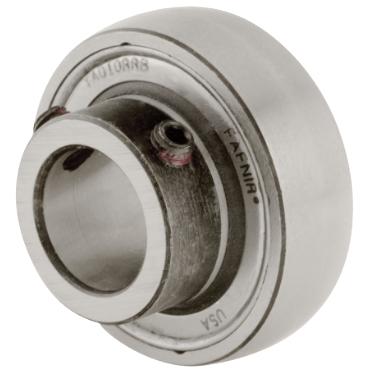

Fafnir YA010RRB YA-RRB Standard Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir YA010RRB is a wide inner ring ball bearing designed for reliable performance in various applications. This bearing features a unique thread form in its set screws, securing it firmly to the shaft and preventing loosening during operation. The double contact seals improve protection against contaminants and retain lubricant effectively even in harsh conditions.

• 5/8 inch inner diameter
• 40 mm outer diameter
• 13 mm outer ring width

Product Highlights

This ball bearing is suitable for standard-duty applications and is constructed with a steel cage and rubber seals, ensuring durability and long service life.

Product Information

Standard Information

• Brand: Fafnir
• MPN: YA010RRB

Technical Specifications

• Outer Ring Width: 13 mm
• Lubrication: Non-Relubricatable
• Seal Type: Contact Seals
• Temperature Range [Min]: -30 °F
• Rolling Element: Ball Bearing
• Static Load Rating [Max]: 1000 lbf
• Overall Width: 0.938 inches
• Enclosure: Double Sealed
• Bearing Type: Ball Bearing
• Locking Device: Setscrew Locking Collar
• Duty: Standard-Duty
• Static Capacity: 1000 lbf
• Inner Diameter: 0.625 inches
• Dynamic Load Rating: 2360 lbf
• Weight: 0.217 lb
• EAN or UPC: 87796098770
