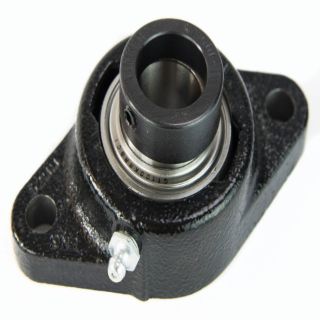

Fafnir VFTD13/16 VFTD1 3/16 TKN Normal Duty Non-Relubricatable Flange Mount Ball Bearing Unit

Product Description

The Fafnir VFTD1 3/16 TKN is a normal duty non-relubricatable flange mount ball bearing unit. This unit has a bore diameter of one and three-sixteenths inches and features an eccentric locking device for secure mounting. The two-bolt flange design helps ensure steady and reliable performance in various industrial applications.

• Dynamic load capacity of 4370 pounds and static load capacity of 2530 pounds
• Temperature rating ranging from minus thirty to two hundred seventy-five degrees Fahrenheit
• Maximum speed capability of 4570 revolutions per minute

Product Highlights

This bearing unit is ideal for use in agriculture, food processing, fans, blowers, and conveyor systems.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: VFDT
• Bore Diameter: 1-3/16 inches
• Dynamic Load Capacity: 4370 pounds
• Static Load Capacity: 2530 pounds
• Maximum Speed: 4570 revolutions per minute
• Overall Length/Diameter: 4-7/16 inches
• Overall Depth: 1-17/32 inches
• Overall Height: 1.531 inches
• Flange Mounting Type: 2-Bolt
• Locking Device: Eccentric
• Bearing Material: Steel
• Temperature Rating: -30 to 275 degrees Fahrenheit
