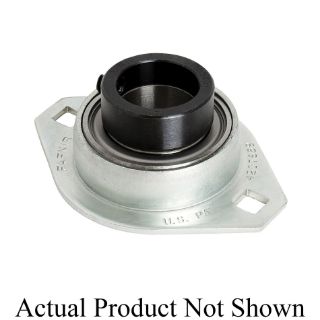

Fafnir VFMST 3/4 TKN Light Duty Flange Mount Ball Bearing Unit

Product Description

The Fafnir VFMST 3/4 TKN is a light duty flange mount ball bearing unit designed for various applications including agriculture, food processing, and material handling. This unit integrates a bearing, housing, seal, and locking mechanism in one device for straightforward installation and maintenance.

• 3/4 inch bore diameter
• Dynamic load capacity of 2880 pounds
• Eccentric locking device for secure fastening

Product Highlights

The VFMST series ensures reliable operation through its robust design and specialized features.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 3/4 inches
• Dynamic Load Capacity: 2880 pounds
• Static Load Capacity: 1480 pounds
• Maximum Speed: 6270 rpm
• Overall Depth: 1-5/16 inches
• Overall Height: 1.313 inches
• Overall Length/Diameter: 3-9/16 inches
• Bolt Center-to-Center Length: 2-13/16 inches
• Locking Device: Eccentric
• Bearing Material: Steel
• Flange Mounting Type: 2-Bolt Base
• Finish: Zinc Plated
