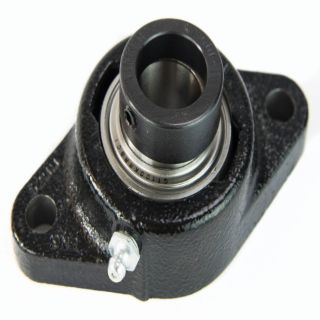

Fafnir VCJT13/16 VCJT Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir VCJT13/16 is a flange mount ball bearing unit manufactured by Timken. It features a 1-1/4 inch bore and is designed for normal duty applications. This unit is suitable for mounting on straight shafts.

• 2-bolt flange mounting design
• Eccentric locking device made of steel
• Temperature rated from minus thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This bearing unit is equipped with a grease fitting for easy relubrication and has a maximum speed of four thousand five hundred seventy RPM.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• MPN: VCJT13/16
• Bore Diameter: 1-1/4 inches
• Load Capacity: 4850 lb Dynamic / 2530 lb Static
• Maximum Speed: 4570 RPM
• Overall Depth: 1.856 inches
• Overall Height: 1.856 inches
• Overall Length/Diameter: 5-9/16 inches
• Bolt Center-to-Center Length: 4-19/32 inches
• Locking Device: Eccentric
• Bearing Material: Steel
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Flange Mounting Type: 2-Bolt
• Finish: Uncoated
