Fafnir VCJT11/4S VCJT Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

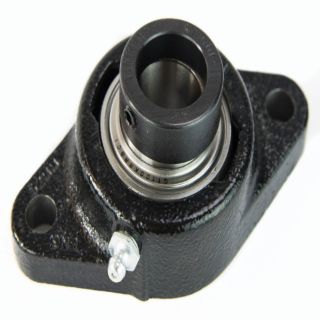

The Fafnir VCJT11/4S is a flange mount ball bearing unit designed for industrial applications. It features a diameter bore of one and one-quarter inches and a bolt center-to-center measurement of four and nineteen thirty-seconds inches. This unit is built for normal duty use, with a robust construction that includes an eccentric locking device for secure attachment.

• Flange mounting with two bolt holes
• Dynamic load capacity of four thousand eight hundred fifty pounds
• Temperature range from negative thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This bearing unit offers a reliable solution for agriculture, food processing, fans, blowers, and conveyor applications.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• MPN: VCJT11/4S
• Bore Diameter: 1-1/4 in
• Dynamic Load Capacity: 4850 lb
• Static Load Capacity: 2530 lb
• Maximum Speed: 4570 rpm
• Overall Depth: 1.856 in
• Overall Height: 1.856 in
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 5-9/16 in
• Bolt Center-to-Center Length: 4-19/32 in
• Locking Device: Eccentric
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Finish: Uncoated
• Series: VCJT
