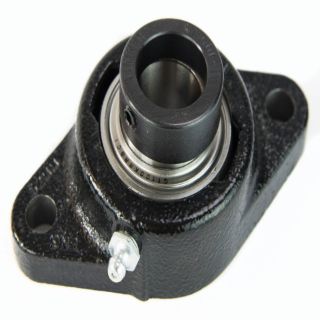

Fafnir VCJT1 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Timken VCJT1 is a flange mount ball bearing unit designed for various industrial applications. It features a one inch bore and a two-bolt flange mount configuration. The unit supports shafts with a slip fit and includes a wide inner ring for improved support.

• Normal duty standard design for stable performance.
• Locking device: Eccentric for secure mounting.
• High load capacity with dynamic load rated at 3490 lb.

Product Highlights

Ideal for applications in agriculture, food processing, and conveyors, this bearing unit offers reliability and ease of installation.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: VCJT
• Bore Diameter: 1 inch
• Load Capacity: 3490 lb Dynamic / 1760 lb Static
• Maximum Speed: 5440 rpm
• Overall Depth: 1.701 inches
• Overall Height: 1.701 inches
• Overall Length/Diameter: 4-7/8 inches
• Bolt Center-to-Center Length: 3-29/32 inches
• Temperature Rating: -30 to 275 degrees F
• Flange Mounting Type: 2-Bolt
• Locking Device: Eccentric
• Bearing Material: Steel
• Finish: Uncoated
