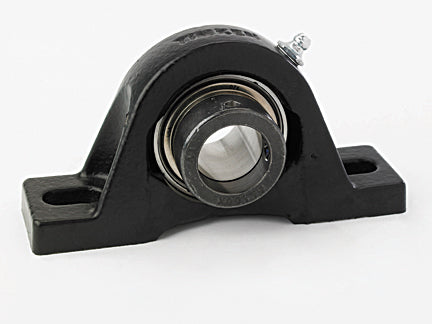

Fafnir VAS13/16 TKN Standard Duty Pillow Block Ball Bearing Housed Unit 1.2502 in Bore

Product Description

The Fafnir VAS13/16 is a standard duty pillow block ball bearing housed unit designed for reliable performance in various applications. This unit features a bore diameter of one point two five zero two inches and is particularly suited for agricultural, food processing, and conveyor systems.

• Constructed with cast iron for durability
• Includes an eccentric self-locking collar for secure shaft retention
• Pre-lubricated for immediate installation

Product Highlights

Ideal for environments requiring dependable support and efficiency, this unit helps prevent downtime through advanced technology.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: VAS Standard Series
• Bore Diameter: 1.2502 inches
• Base Width: 1-9/16 inches
• Overall Length: 6.1889 inches
• Overall Height: 3.2795 inches
• Dynamic Load Capacity: 4850 lb
• Static Load Capacity: 2530 lb
• Maximum Speed: 4570 rpm
• Temperature Rating: 250 degrees F
• Mounting Type: High Base
• Bolt Center-to-Center Length: 4.6259 inches
• Base to Bore Centerline: 1.6874 inches
• Locking Device: Eccentric Self-Locking Collar
• Seal Type: Contact
