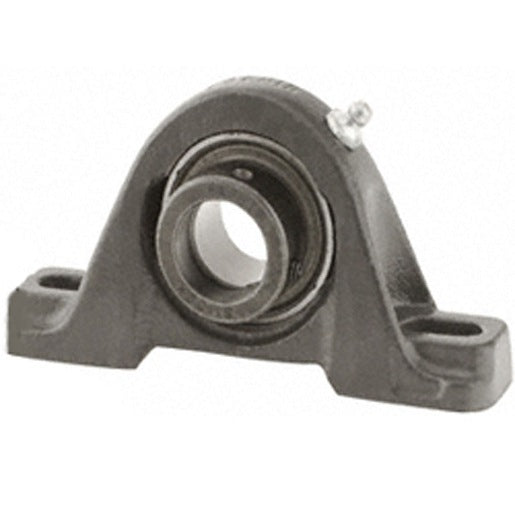

Fafnir VAS115/16 VAS Standard Series Standard Duty Pillow Block Ball Bearing Housed Unit

Product Description

The Fafnir VAS115/16 Pillow Block Ball Bearing Housed Unit is designed for efficient operation in various applications. This unit integrates the bearing, housing, seal, and locking system into one assembly, facilitating simple installation and reliable performance.

• Features a bore diameter of one point nine three eight inches.
• Constructed from durable cast iron for solid support.
• Suitable for agricultural, food processing, fans, blowers, and conveyors applications.

Product Highlights

This unit is part of the VAS Standard Series and is designed for standard duty applications. It supports heavy loads with a dynamic load capacity of eight thousand seven hundred forty pounds and a static load capacity of five thousand two hundred ten pounds.

Product Information

Standard Information

• Manufacturer: Timken
• Brand: Fafnir

Technical Specifications

• Series: VAS Standard Series
• Bore Type: Round
• Bore Diameter: 1.938 inches
• Overall Length: 7.874 inches
• Overall Width: 2.374 inches
• Overall Height: 4.5 inches
• Base Width: 2-3/16 inches
• Base to Bore Centerline: 2-1/4 inches
• Bolt Center-to-Center Length: 6.2204 inches
• Load Capacity: 8740 lb Dynamic / 5210 lb Static
• Mounting Type: High Base
• Locking Device: Eccentric
• Seal Type: Contact
