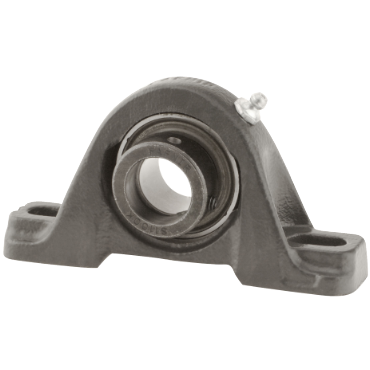

Fafnir VAS1 VAS Series Cast Iron 2-Bolt Ball Bearing Pillow Block

Product Description

The Fafnir VAS1 is a cast iron pillow block that is designed for supporting a shaft with a diameter of one inch. This unit features a two-bolt mounting design for easy installation and replacement. It is suitable for various applications including agriculture, fans and blowers, food processing, and conveyors.

• Ball bearing technology for effective operation
• Lubrication through a grease fitting
• Open end type for easy access

Product Highlights

The Fafnir VAS1 pillow block is pre-lubricated and has an eccentric locking collar to ensure a secure fit. It is also designed to be interchangeable with certain competitive models.

Product Information

Standard Information

• Brand: Fafnir
• MPN: VAS1

Technical Specifications

• Weight: 1.676 lb
• Shaft Diameter: 1 in
• Bolt Hole Length: 13/16 in
• Bolt Holes: 2
• Base Length: 5 1/2 in
• Base Width: 1.4063 in
• Base Height: 19/32 in
• Dynamic Load Rating: 3450 lbf
• Seal Type: Contact Seals
• Housing Material: Cast Iron
