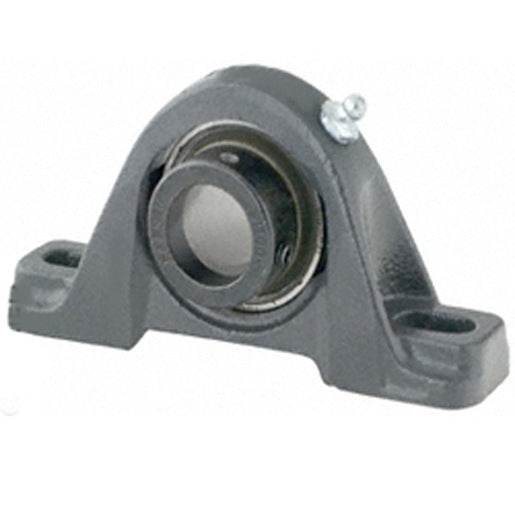

Fafnir VAK23/16 VAK2 3/16 TKN Standard Duty Pillow Block Ball Bearing

Product Description

The Fafnir VAK2 3/16 TKN, with MPN VAK23/16, is a standard duty pillow block ball bearing housed unit. This unit integrates the bearing, housing, sealing, and locking system for simplified installation. It's designed for applications such as agriculture, food processing, and conveyors.

• Features a low base mounting style for versatile installation.
• Constructed from durable cast iron for reliability.
• Includes an eccentric self-locking collar for secure shaft retention.

Product Highlights

This product provides robust support and is pre-lubricated for immediate use. It meets the needs of various industries, ensuring efficiency and performance.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 2.1878 in
• Bolt Center-to-Center Length: 6.937 in
• Overall Length: 8.7519 in
• Overall Width: 2.586 in
• Overall Height: 4.9055 in
• Load Capacity: 10800 lb Dynamic / 6570 lb Static
• Maximum Speed: 2710 rpm
• Temperature Rating: 250 deg F
