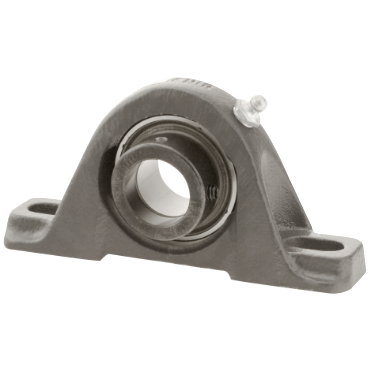

Fafnir VAK17/16 VAK Series Cast Iron 2-Bolt Ball Bearing Pillow Block

Product Description

The Fafnir VAK17/16 is a robust pillow block designed for 1.4375 inch shafts. This unit features a cast iron housing and a two-bolt mounting system, which provides stability and ease of installation. The built-in contact seals help protect the bearing from contaminants, while the eccentric locking collar secures the shaft effectively. This pillow block can be used in various orientations, allowing versatility in mounting and installation.

• Suitable for shafts of 1.4375 inches in diameter
• Casting material: durable cast iron
• Separated grease fittings for relubrication

Product Highlights

The Fafnir VAK Series is suitable for agricultural equipment, fans, blowers, food processing machines, and conveyors. The design ensures efficient operation and low maintenance.

Product Information

Standard Information

• Brand: Fafnir
• MPN: VAK17/16

Technical Specifications

• Shaft Diameter: 1.4375 inches
• Base Height: 0.6563 inches
• Base Width: 1.7813 inches
• Dynamic Load Rating: 6400 lbf
• Housing Material: Cast Iron
• Insert Type: Steel Insert
• Seal Type: Contact Seals
• Locking Device: Eccentric Locking Collar
• Mounted Unit Duty: Normal-Duty
• Lubrication: Relubricatable
• Bolt Holes: 2
• End Type: Open End
• Pillow Block Type: Thru-Bolt
