Fafnir VAK13/16 VAK1 3/16 TKN Standard Duty Pillow Block Bearing

Product Description

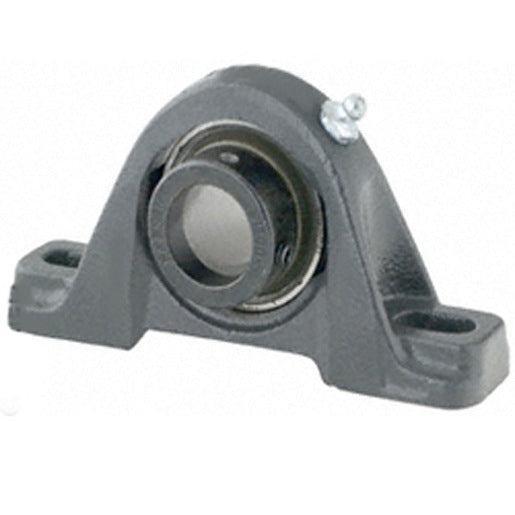

The Fafnir VAK1 3/16 TKN is a standard duty pillow block ball bearing housed unit from Timken. This product combines a bearing, housing, seal, and locking system into one unit for straightforward installation and operation. It is engineered to support various applications such as agricultural and food processing equipment, fans, blowers, and conveyor systems.

• Pillow block unit with narrow inner ring
• Includes eccentric self-locking collar for secure mounting
• Factory pre-lubricated for extended use

Product Highlights

With an overall length of six point one eight eight nine inches and a base width of one and nine-sixteenth inches, this pillow block bearing is built to perform effectively in diverse conditions.

Product Information

Standard Information

• Manufacturer: Timken
• Brand: Fafnir

Technical Specifications

• Series: VAK Standard Series
• Bore Diameter: 1.2502 in
• Bolt Center-to-Center Length: 4.6259 in
• Overall Length: 6.1889 in
• Overall Height: 3.1574 in
• Overall Width: 1.833 in
• Load Capacity: 4850 lb Dynamic / 2530 lb Static
• Maximum Speed: 4570 rpm
• Temperature Rating: 250 deg F
• Mounting Type: Low Base
• Seal Type: Contact
• Locking Device: Eccentric Self-Locking Collar
• Base to Bore Centerline: 1-9/16 in
• Expansion Type: Non-Expansion (Fixed)
