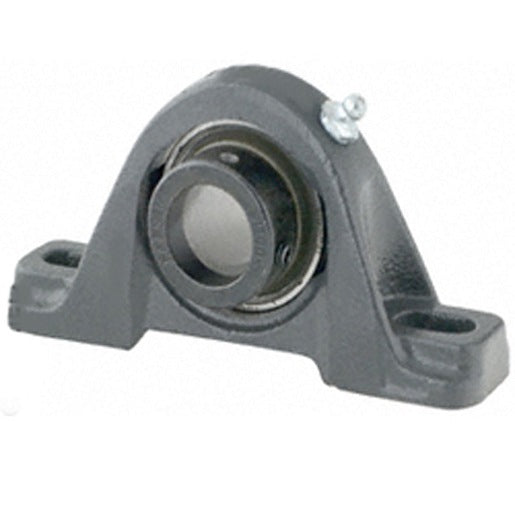

Fafnir VAK111/16 VAK1 11/16 TKN Pillow Block Ball Bearing Housed Unit

Product Description

The Timken VAK1 11/16 is a reliable pillow block ball bearing housed unit. It integrates the bearing, housing, seal, and locking system for straightforward installation. Designed for agricultural, food processing, fans, blowers, and conveyor applications, it offers durable performance.

• Standard duty configuration with a bore diameter of 1-11/16 inches
• Built with low base mounting and eccentric locking device
• Factory pre-lubricated for ease of use

Product Highlights

This unit minimizes downtime through superior technology, ensuring efficient equipment operation.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Finish: Uncoated
• Material: Cast Iron
• Bore Type: Round
• Seal Type: Contact
• Base Width: 2 inches
• Load Capacity: 8160 lb Dynamic / 4400 lb Static
• Maximum Speed: 3230 rpm
• Temperature Rating: 250 degrees F
• Overall Length: 7.531 inches
• Overall Width: 1-23/32 inches
• Overall Height: 4.1259 inches
• Base to Bore Centerline: 2-1/16 inches
• Bolt Center-to-Center Length: 5.874 inches
