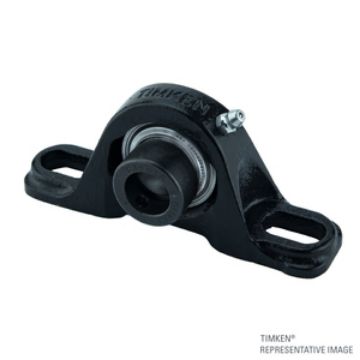

Fafnir VAK11/4 VAK1 1/4 TKN Power Standard Duty Pillow Block

Product Description

The Fafnir VAK1 1/4 TKN is a standard duty pillow block ball bearing housed unit from Timken. It integrates various components such as the bearing, housing, seal, and locking system into one unit. This design simplifies installation and enhances operational efficiency.

• Durable cast iron construction
• Precision Class ABEC 1
• Designed for agricultural, food processing, and conveyor applications

Product Highlights

This pillow block ensures reliable performance with its advanced features.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: VAK Standard Series
• Bore Diameter: 1.2502 inches
• Dynamic Load Capacity: 6400 lbs
• Static Load Capacity: 3440 lbs
• Maximum Speed: 3930 rpm
• Overall Length: 4.6259 inches
• Overall Width: 2.045 inches
• Overall Height: 3.1574 inches
• Base Width: 1-25/32 inches
• Temperature Rating: 250 degrees F
• Mounting Type: Low Base
• Locking Device: Eccentric Self-Locking Collar
• Bolt Center-to-Center Length: 4.6259 inches
• Base to Bore Centerline: 1-9/16 inches
• Bore Type: Round
• Seal Type: Contact
• Expansion Type: Non-Expansion (Fixed)
