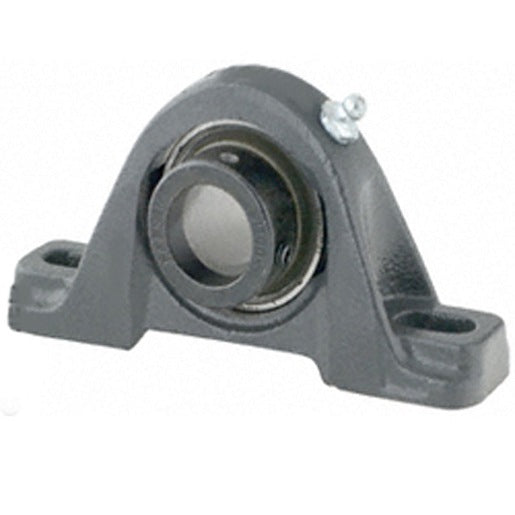

Fafnir VAK1 TKN Standard Duty Pillow Block Ball Bearing Housed Unit

Product Description

The Fafnir VAK1 TKN is a standard duty pillow block ball bearing housed unit designed for agricultural and industrial applications. This unit integrates the bearing, housing, sealing, and locking system into one complete package for efficient installation and operation. It is engineered to minimize downtime and keep your equipment running smoothly. This unit has a bore diameter of one inch and features a low base mount design for flexible installation.

• Designed for quick and easy installation
• Suitable for a wide range of applications including food processing and conveyors
• Self-locking collar ensures secure mounting

Product Highlights

This pillow block ball bearing unit combines strength and efficiency, with features like a contact seal and an eccentric locking device that enhance reliability in demanding environments.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: VAK
• Bore Diameter: 1 in
• Overall Length: 5-1/2 in
• Overall Width: 1-7/32 in
• Overall Height: 2.6889 in
• Base Width: 1-13/32 in
• Dynamic Load Capacity: 3490 lb
• Static Load Capacity: 1760 lb
• Maximum Speed: 5440 rpm
• Temperature Rating: 250 deg F
• Mounting Type: Low Base
• Locking Device: Eccentric
• Seal Type: Contact
