Fafnir TCJT17/16 TCJT Industrial Normal Duty Flange Mount Ball Bearing Unit

Product Description

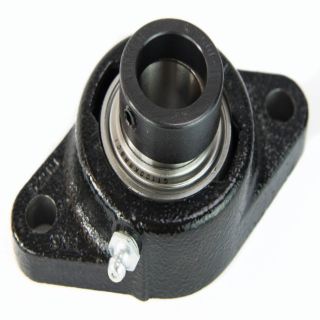

Fafnir TCJT1 7/16 TKN is a flange mount ball bearing unit from Timken. It is designed for industrial applications requiring a robust support system. This unit features a bore diameter of one and seven-sixteenths inches and a two-bolt flange for secure mounting.

• Dynamic load capacity of six thousand four hundred pounds.
• Temperature rating ranges from negative thirty to two hundred seventy-five degrees Fahrenheit.
• Includes an eccentric locking device for reliable operation.

Product Highlights

This product is ideal for use in agriculture, food processing, fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• MPN: TCJT17/16
• Series: TCJT
• Bore Diameter: 1-7/16 in
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Maximum Speed: 500 rpm
• Overall Depth: 2.106 in
• Overall Height: 2.106 in
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 6-1/8 in
• Bolt Center-to-Center Length: 5-1/8 in
• Locking Device: Eccentric
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Finish: Uncoated
