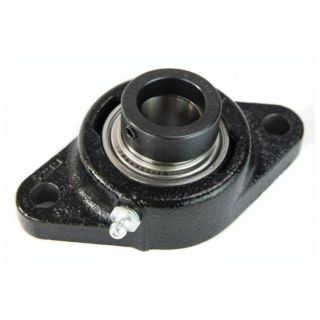

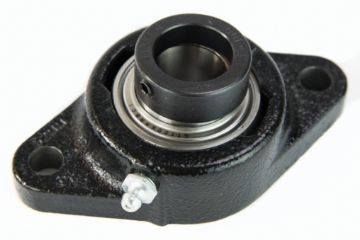

Fafnir TCJT11/2 TCJT Industrial Series Round Bore Standard Duty Ball Bearing Housed Unit

Product Description

The Fafnir TCJT1 1/2 TKN is a ball bearing housed unit designed for standard duty applications. This product features a round bore with a diameter of one and one-half inches. It delivers reliable performance with its robust construction. The unit is pre-assembled and ready for easy installation, making it ideal for both new installations and replacements.

• Includes a self-aligning feature to compensate for shaft misalignment.
• Equipped with a grease fitting for easy relubrication.
• Constructed from steel to ensure durability and longevity.

Product Highlights

This housed unit integrates the bearing, housing, seal, and locking system into one easy-to-use device.

Product Information

Standard Information

• Brand: Fafnir
• Series: TCJT Industrial Series

Technical Specifications

• MPN: TCJT11/2
• Bore Diameter: 1-1/2 inches
• Load Capacity: 8130 lb Dynamic / 3970 lb Static
• Locking Device: Eccentric
• Overall Height: 2.334 inches
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 6.75 inches OAL / 3.15 inches OD
• Bolt Center-to-Center Length: 5.656 inches
