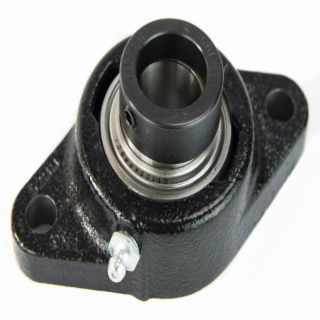

Fafnir TCJT1 TKN Industrial Normal Duty Flange Mount Ball Bearing Unit

Product Description

The Timken TCJT1 TKN is a flange mount ball bearing unit designed for industrial applications. This unit has a one inch bore and a bolt center-to-center length of three and twenty-nine thirty-seconds inches. The two-bolt flange makes installation straightforward and effective. It is suitable for various uses, including agriculture, food processing, fans, blowers, and conveyors.

• Steel bearing construction
• Eccentric locking device
• Temperature range: -30 to 275 degrees Fahrenheit

Product Highlights

This unit features factory pre-lubricated bearings that offer easy installation in tight spaces where standard designs might not fit.

Product Information

Standard Information

• Brand: Timken
• Manufacture Type: Normal Duty

Technical Specifications

• Series: TCJT
• Load Capacity: 3490 lb Dynamic / 1760 lb Static
• Maximum Speed: 500 rpm
• Overall Depth: 1.839 inches
• Overall Height: 1.839 inches
• Overall Length/Diameter: 4-7/8 inches
• Bore Diameter: 1 inch
• Flange Mounting Type: 2-Bolt
• Bolt Center-to-Center Length: 3-29/32 inches
• Locking Device: Eccentric
• Finish: Uncoated
• Temperature Rating: -30 to 275 degrees Fahrenheit
