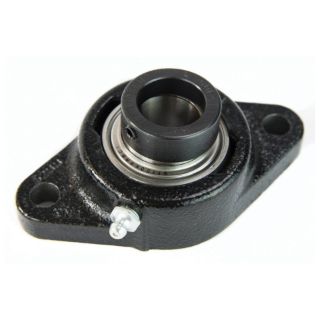

Fafnir TCJT1 3/4 TKN Round Bore Standard Duty Ball Bearing Housed Unit

Product Description

The Fafnir TCJT1 3/4 TKN is a round bore standard duty ball bearing housed unit designed for reliable performance. This unit combines the bearing, housing, seal, and locking system into one assembly for straightforward installation and operation. It features specialized design for various applications, aimed at minimizing downtime and enhancing equipment efficiency.

• Designed for easy installation with pre-assembled units
• Self-aligning B-type bearings that accommodate misalignment
• Factory pre-lubricated with a grease fitting for relubrication

Product Highlights

This unit reduces maintenance and enhances productivity by using advanced technology for high performance in various industrial settings.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: TCJT Industrial Series
• Bore Diameter: 1-3/4 in
• Load Capacity: 8160 lb Dynamic / 4600 lb Static
• Locking Device: Eccentric
• Overall Height: 2.334 in
• Bearing Material: Steel
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 7.06 in OAL / 3.35 in OD
• Bolt Center-to-Center Length: 5.844 in
