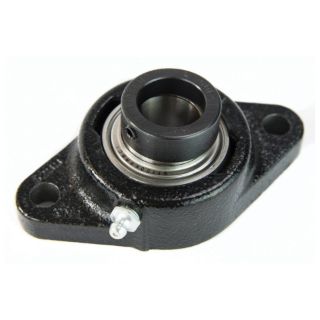

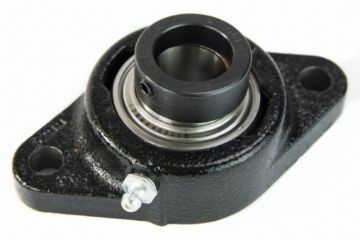

Fafnir TCJT1 1/4 TKN Round Bore Standard Duty Ball Bearing Housed Unit

Product Description

The Fafnir TCJT1 1/4 TKN is designed for efficiency in industrial applications. This standard duty ball bearing housed unit integrates the bearing, housing, seal, and locking system into one assembly, simplifying installation and operation.

• Assembled and ready for mounting.
• Factory pre-lubricated with a grease fitting for relubrication.
• Equipped with self-locking collars for added stability.

Product Highlights

This unit is part of the TCJT Industrial Series and features a round bore with a diameter of one and one-quarter inches. It is suitable for standard duty applications and is designed to handle loads efficiently.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken
• Type: Round Bore Standard Duty

Technical Specifications

• Series: TCJT Industrial Series
• Bore Diameter: 1-1/4 in
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Locking Device: Eccentric
• Overall Height: 2.106 in
• Bearing Material: Steel
• Flange Mounting Type: 2-Bolt
• Overall Length / Diameter: 6.13 in OAL / 2.83 in OD
• Bolt Center-to-Center Length: 5-1/8 in
