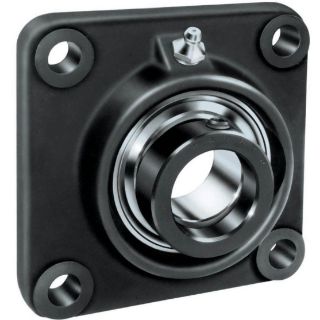

Fafnir TCJ2 TKN Industrial Normal Duty Flange Mount Ball Bearing Unit

Product Description

Fafnir TCJ2 is a flange mount ball bearing unit designed for reliable service in a variety of industrial applications. This unit features a two-inch bore and a robust four-bolt flange mount for secure installation. With its capacity to handle dynamic loads of up to eleven thousand eight hundred pounds, it is suitable for demanding tasks in agriculture, food processing, and material handling.

• Two-inch bore size
• Four-bolt flange mount style
• Self-aligning design reduces wear

Product Highlights

This product is part of the TCJ series, known for its durability and versatility. It includes an eccentric locking device for easy mounting and alignment. With a temperature rating spanning from negative thirty to two hundred seventy-five degrees Fahrenheit, it is built to perform in challenging environments.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: TCJ
• Bore Diameter: 2 inches
• Load Capacity: 10800 lb Dynamic / 6570 lb Static
• Maximum Speed: 500 rpm
• Overall Depth: 2.958 inches
• Overall Height: 2.958 inches
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 6.375 inches
• Bolt Center-to-Center Length: 5.125 inches
• Locking Device: Eccentric
• Bearing Material: Steel
• Temperature Rating: -30 to 275 degrees F
• Finish: Uncoated
