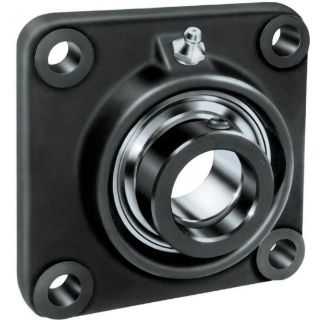

Fafnir TCJ17/16 TCJ Industrial Normal Duty Flange Mount Ball Bearing Unit

Product Description

The Fafnir TCJ1 7/16 TKN is a reliable flange mount ball bearing unit designed for industrial applications. This unit features a one and seven-sixteenth inch diameter bore and is built to withstand demanding conditions. The TCJ series is known for its durability and efficiency, making it suitable for various uses.

• Designed for easy mounting on straight shafts.
• Equipped with an eccentric locking device for secure performance.
• Factory pre-lubricated for immediate installation.

Product Highlights

This unit offers a robust design, ideal for heavy-duty operations. The steel bearing provides high load capacity and longevity in challenging environments.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1-7/16 in
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Maximum Speed: 500 rpm
• Overall Depth: 2.106 in
• Locking Device: Eccentric
• Overall Height: 2.106 in
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 4-5/8 in
• Bolt Center-to-Center Length: 3-5/8 in
