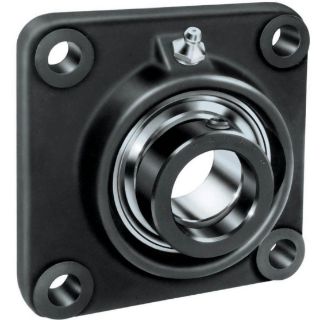

Fafnir TCJ115/16 TCJ Industrial Normal Duty Flange Mount Ball Bearing Unit

Product Description

The Fafnir TCJ115/16 is a flange mount ball bearing unit designed by Timken. This unit features a one point fifteen-sixth inches diameter bore and is suitable for various industrial applications. The product is built to handle high dynamic loads of up to 8740 pounds and static loads of 5210 pounds.

• 4-bolt flange mount for secure installation
• Pre-lubricated and ready to mount
• Wide inner ring design for enhanced shaft support

Product Highlights

The TCJ115/16 flange mount ball bearing unit is ideal for applications in agriculture, food processing, fans, blowers, and conveyors. Its eccentric locking device ensures easy installation and stability during operation.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: TCJ
• Bore Diameter: 1-15/16 inches
• Dynamic Load Capacity: 8740 pounds
• Static Load Capacity: 5210 pounds
• Maximum Speed: 500 rpm
• Overall Length/Diameter: 5-5/8 inches
• Bolt Center-to-Center Length: 4-3/8 inches
• Overall Depth: 2.615 inches
• Overall Height: 2.615 inches
• Locking Device: Eccentric
• Bearing Material: Steel
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Flange Mounting Type: 4-Bolt
• Finish: Uncoated
