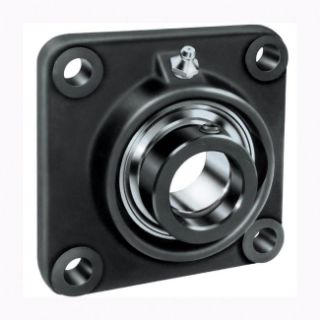

Fafnir TCJ111/16 TCJ Industrial Series Round Bore Standard Duty Ball Bearing Housed Unit

Product Description

Fafnir TCJ111/16 is a ball bearing housed unit designed for standard duty applications. It combines the bearing, housing, seal, and locking system into one compact unit for easy installation and operation. This model features a round bore with a diameter of one point six eight eight inches and is ideal for various machinery.

• Each unit is factory pre-lubricated for immediate use.
• Self-aligning B-type bearings compensate for shaft misalignment.
• Includes a grease fitting for relubrication if needed.

Product Highlights

This bearing unit minimizes downtime with advanced technology that supports efficient machinery operation.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: TCJ Industrial Series
• Bore Diameter: 1.688 inches
• Load Capacity: 8160 lb Dynamic / 4600 lb Static
• Locking Device: Eccentric
• Overall Height: 2.334 inches
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 5.38 inches OAL / 3.4 inches OD
• Bolt Center-to-Center Length: 4-1/8 inches
