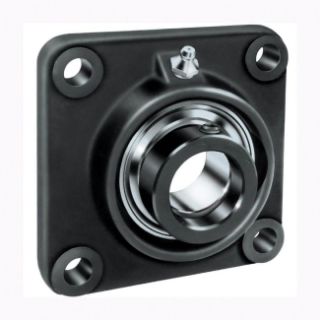

Fafnir TCJ1 TKN Round Bore Standard Duty Ball Bearing Housed Unit

Product Description

The Fafnir TCJ1 TKN is a round bore standard duty ball bearing housed unit from Timken. This unit integrates the bearing and housing for simple installation and effective operation. Designed for various industrial applications, it solves specific issues with its advanced technology. This product is a solid choice for maintaining operational efficiency.

• Includes a built-in locking system for secure installations.
• Factory pre-lubricated with an option for relubrication.
• Equipped with an eccentric locking device for better stability.

Product Highlights

This unit features a robust design that withstands dynamic loads up to three thousand four hundred ninety pounds.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1 in
• Load Capacity: 3490 lb Dynamic / 1760 lb Static
• Locking Device: Eccentric
• Overall Height: 1.834 in
• Bearing Material: Steel
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 3.75 in OAL / 2.05 in OD
• Bolt Center-to-Center Length: 2.762 in
