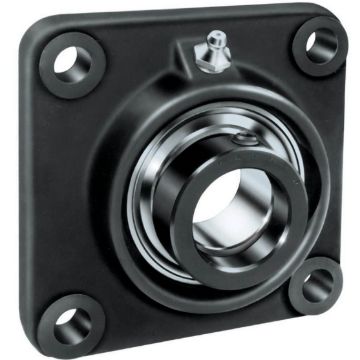

Fafnir TCJ1 1/4 TKN Industrial Normal Duty Flange Mount Ball Bearing Unit

Product Description

The Fafnir TCJ1 1/4 TKN is a flange mount ball bearing unit made by Timken. It features a one point twenty-five inch bore diameter and a four bolt flange mounting for easy installation. This unit supports heavy loads and is suitable for various industrial applications.

• Designed for easy mounting on straight shafts
• Supports dynamic loads up to six thousand four hundred pounds
• Temperature rating from negative thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

The TCJ1 series is ideal for applications in agriculture, food processing, and conveyor systems.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: TCJ
• Bore Diameter: one and one quarter inches
• Load Capacity: six thousand four hundred pounds dynamic, three thousand four hundred forty pounds static
• Maximum Speed: five hundred rpm
• Overall Depth: two point one zero six inches
• Locking Device: Eccentric
• Overall Height: two point one zero six inches
• Bearing Material: Steel
• Temperature Rating: negative thirty to two hundred seventy-five degrees Fahrenheit
• Flange Mounting Type: Four Bolt
• Overall Length/Diameter: four and five eighths inches
• Bolt Center-to-Center Length: three and five eighths inches
