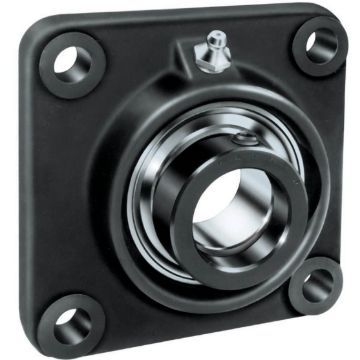

Fafnir TCJ1 1/2 TKN Flange Mount Ball Bearing Unit

Product Description

Fafnir TCJ1 1/2 TKN is a flange mount ball bearing unit designed for reliable performance in various industrial applications. This unit features a bore diameter of one and one-half inches and a four-bolt flange mounting setup.

• Durable steel bearing construction.
• Self-locking collars for easy installation.
• Temperature range from negative thirty to two hundred seventy-five degrees Fahrenheit.

Product Highlights

Designed for agriculture, food processing, fans, blowers, and conveyors. This unit is suitable for applications requiring minimal machining and comes pre-lubricated from the factory.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• MPN: TCJ1 1/2
• Series: TCJ
• Bore Diameter: 1-1/2 inches
• Bolt Center-to-Center Length: 4 inches
• Overall Length/Diameter: 5-1/8 inches
• Overall Depth: 2.334 inches
• Overall Height: 2.334 inches
• Load Capacity: 8130 lb Dynamic, 3970 lb Static
• Maximum Speed: 500 rpm
• Locking Device: Eccentric
• Finish: Uncoated
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Flange Mounting Type: 4-Bolt
• Features: Self-aligning B-types, factory pre-lubricated, tri-ply seal protection for dirty environments
