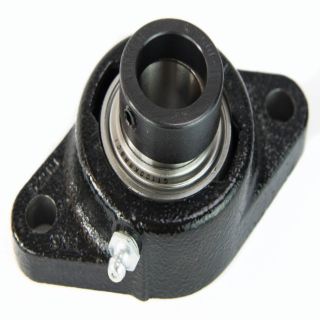

Fafnir SCJT30 SCJT Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJT30 is a normal duty standard flange mount ball bearing unit produced by Timken. This unit features a thirty millimeter bore designed for mounting on straight shafts. The assembly is characterized by its durable construction, ensuring stability and performance in various industrial applications.

• Constructed with a steel bearing.
• Operates effectively within a temperature range of minus thirty to two hundred seventy-five degrees Fahrenheit.
• Includes a set screw locking device.

Product Highlights

This unit is ideal for agriculture, food processing, and applications involving fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 30 mm
• Load Capacity: 4850 lb Dynamic / 2530 lb Static
• Maximum Speed: 4570 rpm
• Overall Depth: 34.1 mm
• Overall Height: 34.087 mm
• Overall Length/Diameter: 141.224 mm
• Bolt Center-to-Center Length: 116.68 mm
• Locking Device: Set Screw
