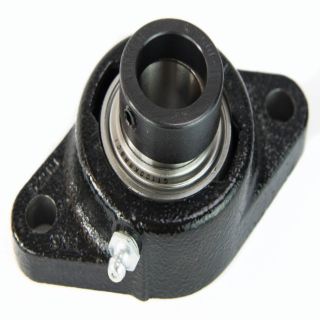

Fafnir SCJT2 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJT2 TKN is a flange mount ball bearing unit designed for durability and reliability. This product features a two-bolt flange configuration, ensuring a secure installation. It is ideal for various applications such as agriculture and food processing.

• 2 inch bore diameter
• Heavy load capacity of 10800 lb dynamic and 6570 lb static
• Operating temperature range between -30 to 275 degrees Fahrenheit

Product Highlights

This unit is equipped with a set screw locking device and a steel bearing, providing stability and lasting performance in different environments.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJT
• Bore Diameter: 2 inches
• Overall Length/Diameter: 8-1/2 inches
• Overall Depth: 1-57/64 inches
• Overall Height: 1.914 inches
• Load Capacity: 10800 lb Dynamic / 6570 lb Static
• Maximum Speed: 2710 rpm
• Flange Mounting Type: 2-Bolt
• Locking Device: Set Screw
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Finish: Uncoated
