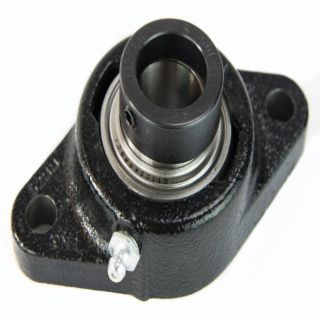

Fafnir SCJT13/8 SCJT Flange Mount Ball Bearing Unit Normal Duty Standard

Product Description

The Timken Fafnir SCJT13/8 is a flange mount ball bearing unit designed for industrial applications. This unit features a one and three-eighths inches diameter bore and is built for normal duty operations. The SCJT series ensures stability and durability through its two-bolt flange mounting. It is suitable for various applications, including agriculture and food processing.

• Features a set screw locking device for secure mounting.
• Constructed with steel for strength and long-lasting performance.
• Supports dynamic loads up to six thousand four hundred pounds.

Product Highlights

This bearing unit promotes easy installation on straight shafts with its slip fit design, making it efficient for maintenance and replacement.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Fafnir

Technical Specifications

• Series: SCJT
• Bore Diameter: 1-3/8 in
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Maximum Speed: 3930 rpm
• Overall Depth: 1-1/2 in
• Overall Height: 1.504 in
• Overall Length/Diameter: 6-1/8 in
• Bolt Center-to-Center Length: 5-1/8 in
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 2-Bolt
• Bearing Material: Steel
• Locking Device: Set Screw
• Finish: Uncoated
