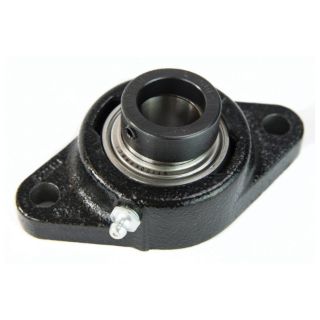

Fafnir SCJT13/4 SCJT Standard Series Round Bore Standard Duty Ball Bearing Housed Unit

Product Description

The Fafnir SCJT13/4 is a standard series round bore standard duty ball bearing housed unit from Timken. This unit is designed for easy installation and maintenance, combining a bearing, housing, seal, and locking system. Ideal for various applications, including conveyors and general industrial equipment, this component addresses specific operational needs with superior technology.

• Designed for easy installation with an integrated locking system.
• Pre-lubricated and ready for use.
• Meets precision Class ABEC 1 standards.

Product Highlights

This ball bearing housed unit features a bore diameter of one and three-quarter inches, perfect for applications requiring compact assembly.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJT Standard Series
• Bore Diameter: 1-3/4 inches
• Load Capacity: 8160 lb Dynamic / 4600 lb Static
• Locking Device: Set Screw
• Overall Height: 1.718 inches
• Bearing Material: Steel
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 7.06 inches OAL / 3.35 inches OD
• Bolt Center-to-Center Length: 5.84 inches
