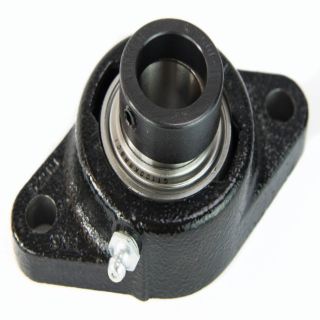

Fafnir SCJT13/16 SCJT1 3/16 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJT13/16 ball bearing unit is designed for robust performance in various applications. This unit features a normal duty standard design with a one and one-eighth inch bore diameter, making it suitable for mounting on straight shafts. The two-bolt flange mount allows for secure installation and stability.

• Designed for industrial applications including agriculture and food processing.
• Features a set screw locking device and is constructed from durable steel.
• Pre-lubricated with a grease fitting for easy relubrication.

Product Highlights

This unit offers reliable support and high load capacity, ideal for equipment such as fans and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1-1/8 in
• Bolt Center-to-Center Length: 4-19/32 in
• Overall Length/Diameter: 5-9/16 in
• Overall Depth: 1-11/32 in
• Overall Height: 1.342 in
• Locking Device: Set Screw
• Bearing Material: Steel
• Load Capacity: 4850 lb Dynamic / 2530 lb Static
• Maximum Speed: 4570 rpm
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 2-Bolt
• Finish: Uncoated
