Fafnir SCJT11/4S | SCJT Standard Series 2-Bolt Flange Unit

Product Description

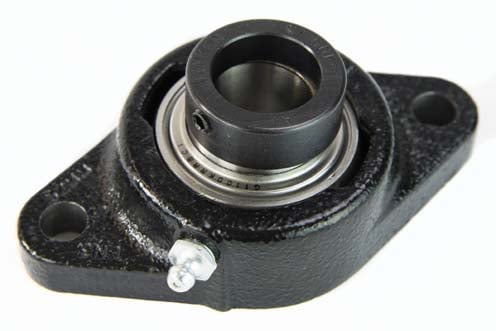

The Fafnir SCJT11/4S is a two-bolt flange unit designed for various industrial applications. It features a one point twenty-five inch shaft diameter and incorporates contact seals with a setscrew locking mechanism. These units are factory pre-lubricated, ensuring ease of use, and they include a grease fitting for relubrication if necessary.

• Two bolt design for compact installation
• Durable cast iron housing
• Relubricatable for extended life

Product Highlights

This flange unit is suitable for use in agriculture, fans, blowers, food processing, and conveyors, making it a versatile choice for various needs.

Product Information

Standard Information

• Brand: Fafnir
• MPN: SCJT11/4S

Technical Specifications

• Flange Type: 2-Bolt Flange
• Bearing Design: Non-Expansion
• Seal Type: Contact Seals
• Mounted Unit Duty: Normal-Duty
• Bolt Hole Spacing: 4.5938 inches
• End Type: Open End
• Housing Length: 5 9/16 inches
• Housing Width: 1 1/8 inches
• Shaft Diameter: 1.25 inches
• Locking Device: Setscrew Locking Collar
• Housing Material: Cast Iron
• Weight: 1.792 pounds
• EAN/UPC: 87796058651
