Fafnir SCJT11/4S SCJT Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

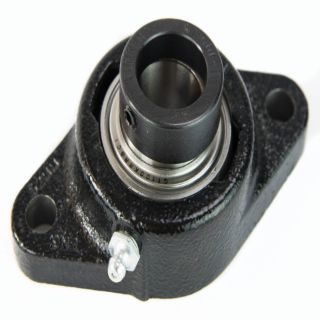

The Fafnir SCJT11/4S is a flange mount ball bearing unit made by Timken. It features a one and one-eighth inch bore and is designed for standard duty applications. This unit is suitable for mounting on straight shafts with a slip fit, making it ideal for various industrial uses.

• Normal Duty Standard type with two-bolt flange mount
• Dynamic load capacity of four thousand eight hundred fifty pounds
• Temperature rating from negative thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This bearing unit is constructed using premium steel and is pre-lubricated for easy maintenance. The design allows for high performance in agricultural, food processing, and conveyor applications.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1-1/8 in
• Load Capacity: 4850 lb Dynamic / 2530 lb Static
• Maximum Speed: 4570 rpm
• Overall Depth: 1-11/32 in
• Locking Device: Set Screw
• Overall Height: 1.342 in
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 6.12 in
• Bolt Center-to-Center Length: 4-19/32 in
