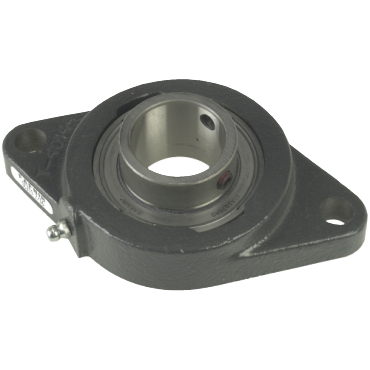

Fafnir SCJT11/4 SCJT Standard Series 2-Bolt Flange Unit

Product Description

The Fafnir SCJT11/4 is a 2-bolt flange unit designed for reliable performance. This flange cartridge is suitable for mounting in tight spaces, thanks to its compact two-bolt design. The unit includes GYA-RRB bearings, equipped with contact seals to protect against contaminants. It has a setscrew locking mechanism and is factory pre-lubricated with an option for relubrication through a grease fitting.

• Designed for tight spaces with a 2-bolt mounting configuration
• Includes GYA-RRB bearings for minimized wear
• Factory pre-lubricated with relubrication capability

Product Highlights

This unit is ideal for various applications including agriculture, fans and blowers, food processing, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• MPN: SCJT11/4

Technical Specifications

• End Type: Open End
• Shaft Diameter: 1.25 inches
• Bolt Hole Size: 0.5156 inches
• Duty: Normal-Duty
• Length Through Bore: 1.2813 inches
• Bolt Hole Spacing: 5 1/8 inches
• Flange Type: 2-Bolt Flange
• Weight: 2.604 LB
• Housing Material: Cast Iron
• Seal Type: Contact Seals
• Locking Device: Setscrew Locking Collar
• Bearing Type: Ball Bearing
• Housing Width: 1.3438 inches
• Overall Width: 2.0938 inches
• Housing Height: 3 5/8 inches
• Housing Length: 6 1/8 inches
• Flange Thickness: 0.5313 inches
• Lubrication: Relubricatable
